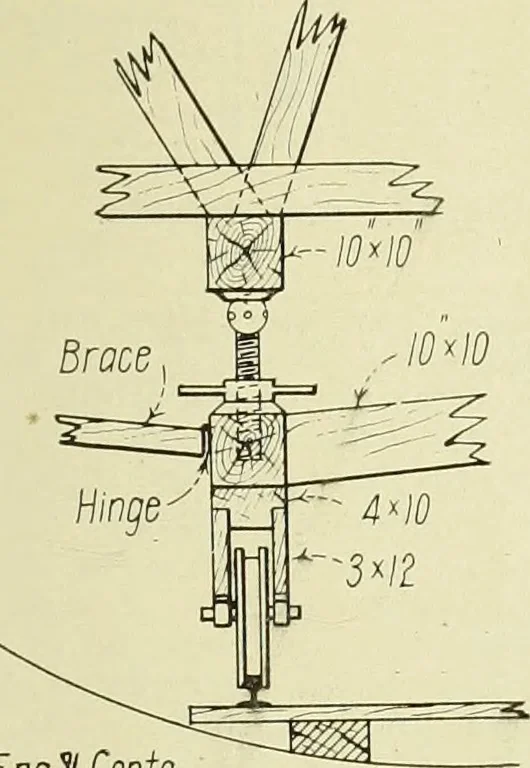

Eng.lt Contg. Fig. 14. Three Types of Wood Centers. … the intrados of the arch, at the crown,ing line and side wall, as the moments aresitive at those points. At the 60° point,: steel is at the extrados.rhe formulas for bending moment, Tablesind II, show that under uniform load, thetrados reinforcement need only extend fromDUt the 20° point to the 80°…
