Building construction and superintendence, by F.E. Kidder ... (1896)
Kidder, Frank E. (Frank Eugene), 1859-1905 · New York, W.T. Comstock · leaf 442

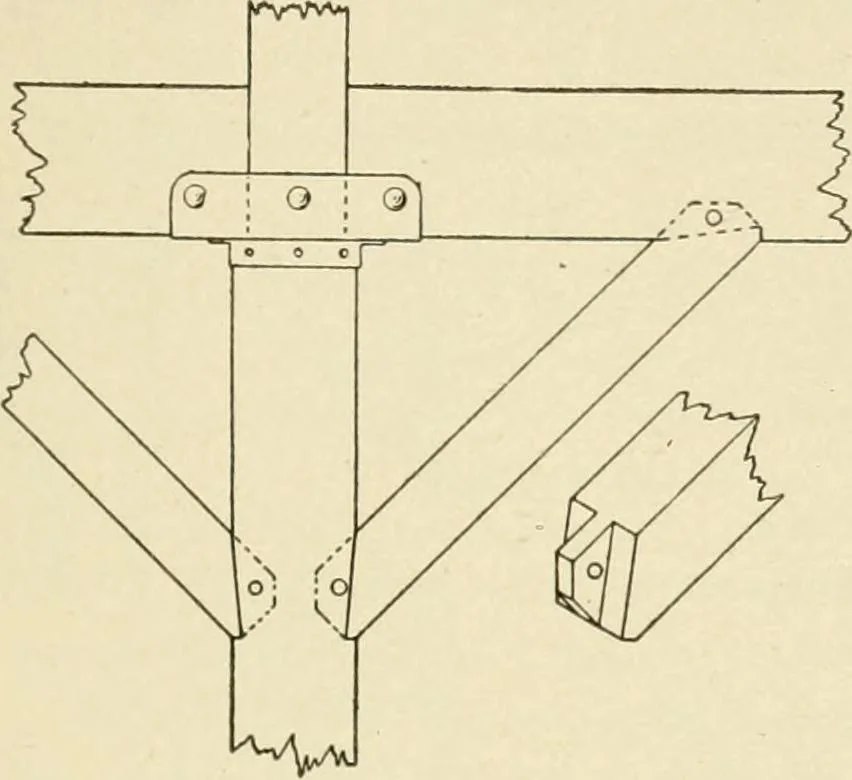

HEAVY FRAMING. 437 … method of framing the brace to the post and girder, all things con-sidered, is that shown in Fig. 473. Cast iron knees of the patternshown in Fig. 474 were found to add little to the stiffness of the bent, until the latter had de-flected more than would beadmissible in a building. As a result of…
Building
