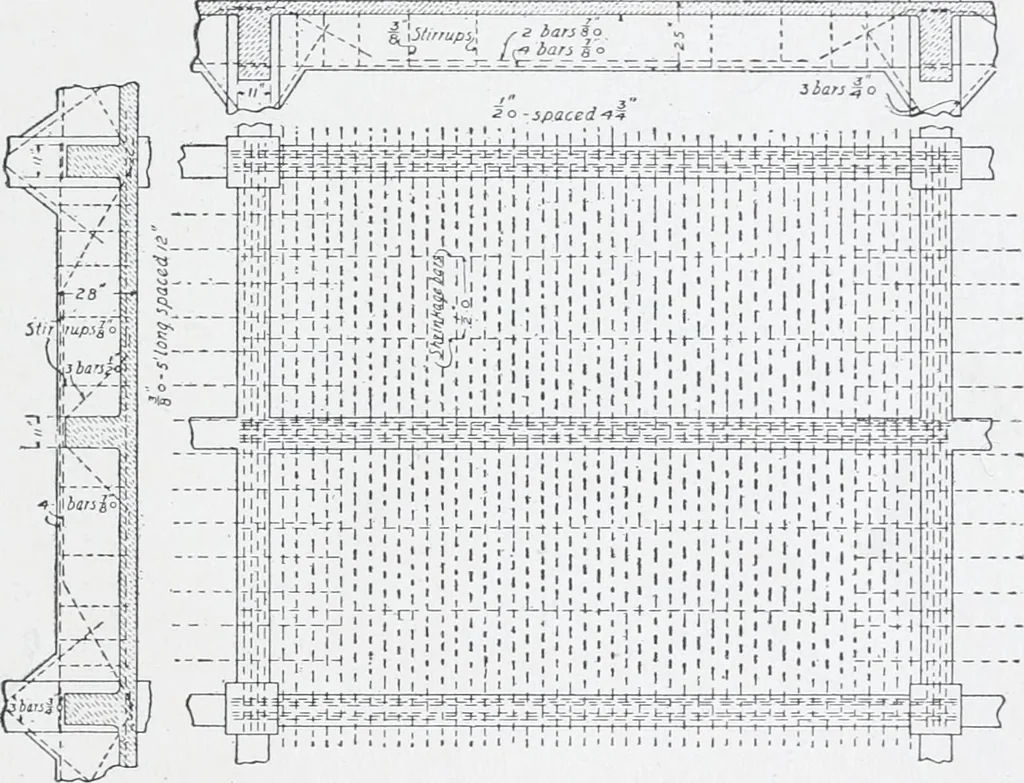

stead of f-inch bars, the shearing stresses in the con-crete due to the beam will be amply provided for. A complete de-tailed drawing will show all of the bars required for a panel betweenfour of these columns. The student should study this drawing (seeFig. 109) in connection with the foregoing… … £3 [^fmupi, , 1 K Ti -1 /(-»ban go ^ I , ^^ spaced-^^ ■r?>f^ Fig. 109. Detail of Floor-Panel. power has been estimated at some definite figure, the required areaof the footing becomes a perfectly definite quantity, regardless of themethod of construction of the footing. But with the area of…
