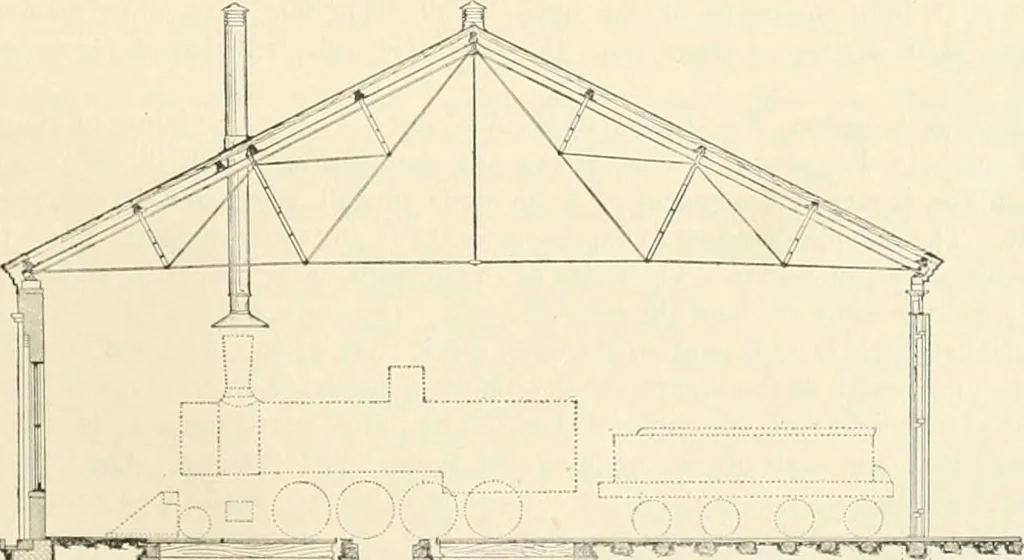

able pit. The turn-table pit is drained through a pipe-drain tothe main sewer. The turn-table pit is 60.6 ft. in diameter in the clear. The turn-table is ofwrought-iron, and is turned liy steam-power. A complete specification for this engine-house is given in the A])pendix at the back of this book.… … Fig. 315.—Cross-section. liiij iA.ti \ijiui_vt Haupt, Superintendent, Motive Power, N. & W. R. R., is a segmental brick roundhouse with iron roof-trusses and slate roof. The outside diameter of the house is 314 ft. 3 in., the inner diameter is 186 ft.3 in., and the diameter of the turn-table is…
