Buildings and structures of American railroads. A reference book for railroad managers, superintendents, master mechanics, engineers, architects, and students (1893)
Berg, Walter G. (Walter Gilman), 1858-1908 · New York, J. Wiley & Sons · leaf 262

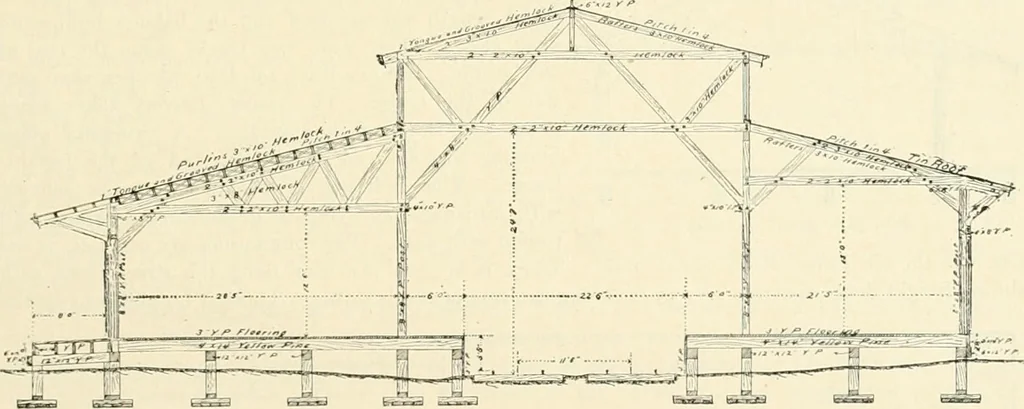

Fig. 3S0.—Front Elevation. corrugated iron, and roofed with tin. Two tracks enter the building in one pit, spaced excentrir, thefloor-space on the narrow side being for outgoing freight, and the floor-space on the other side being … Fic;. 381.—Cross SEcrioN. for incoming freight. The site for this depot was limited to a lot with only 125 ft. front onFrelinghaysen .\venue. There is an 8-ft. platform along .Mpine Street for incoming freight, and a6-ft. platform along Frelinghuysen Avenue for incoming and outgoing freight. On the…
Railroads -- Buildings and structures · Buildings
