Building stone, lathing, plastering, and tiling, common brickwork, ornamental brickwork and terra cotta : lighting fixtures, use and design of lighting fixtures, architectural design (1909)
International Correspondence Schools · Scranton : International Textbook Co. · leaf 156

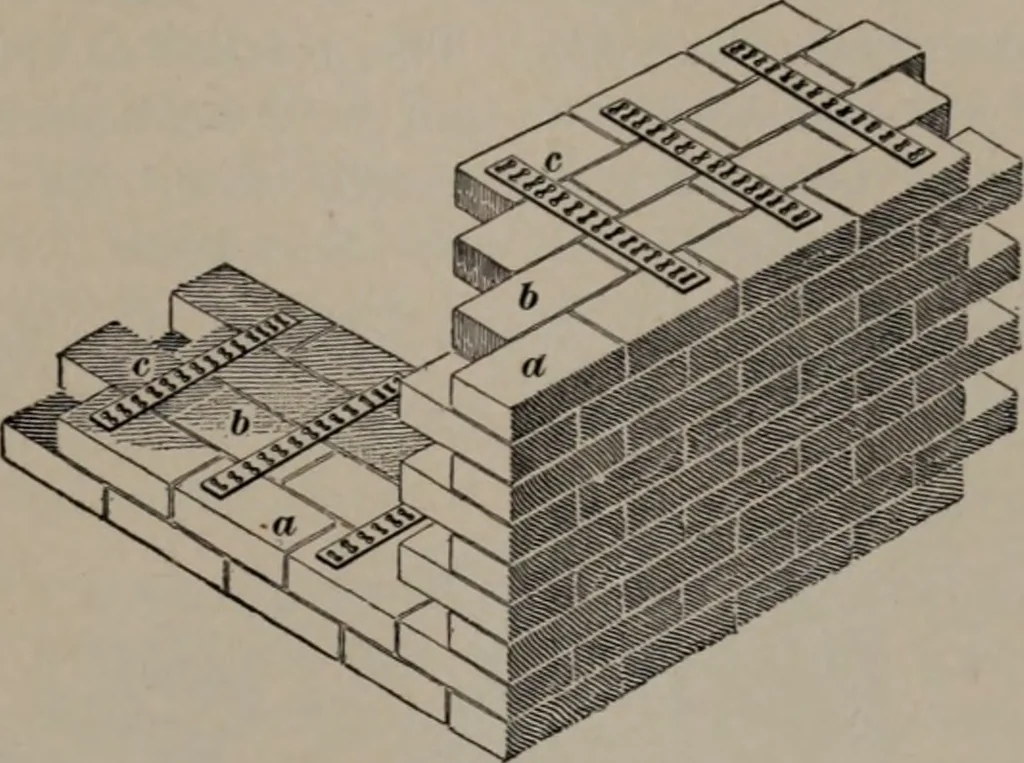

Fig. 13 45. Metal Ties for Brickwork.—Fig. 13 illustratesthe method of bonding in face brick with steel or galvanized-iron wire. These wire bonders b are twisted at the ends,and hold together the inside and outside courses a and c^ as §39 COMMON BRICKWORK 27 shown. They are laid in every sixth… … Fig. 14 destroyed by the action of rust, the mortar used should havehardened sufficiently to keep the face brick in place. A still better method of tying front brick to the commonbrick in the rear of the wall is by the use of perforated steelties from A to i inchthick, and having abouthalf the…
Building · Building materials · Architectural design · Lighting, Architectural and decorative
