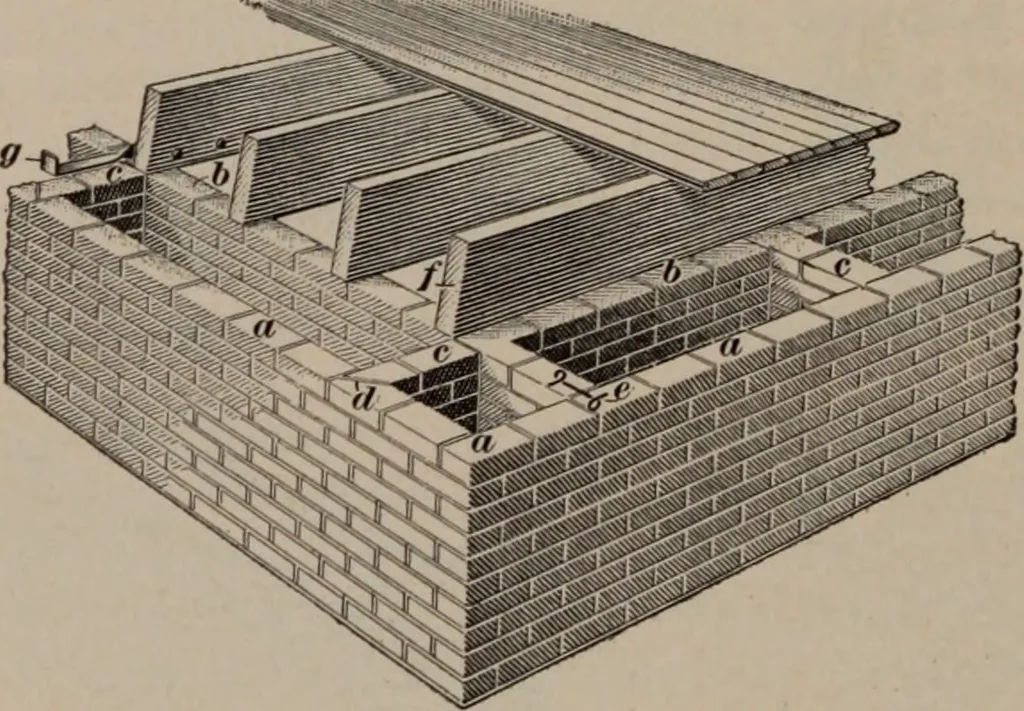

ped in hot asphalt toprevent them from rusting, 49. Bonding Hollow Walls With Brick Withes. Another method of bonding hollow walls is illustrated inFig. 19. Both the inside and the outside walls are 4 inchesthick. They depend for their strength not on a single tie ofbrick or wire spaced here and… … Fig. 19 is shown at a, the inner wall at b, and the withes, or con-necting walls, at c. The bond is shown in two ways: at d,the bricks are cut, as shown, and at e the bond is made bywire bonders. The manner of placing the floorbeams on theinner wall is shown at /, and a 2 X \ X 20 anchor turnedup…
