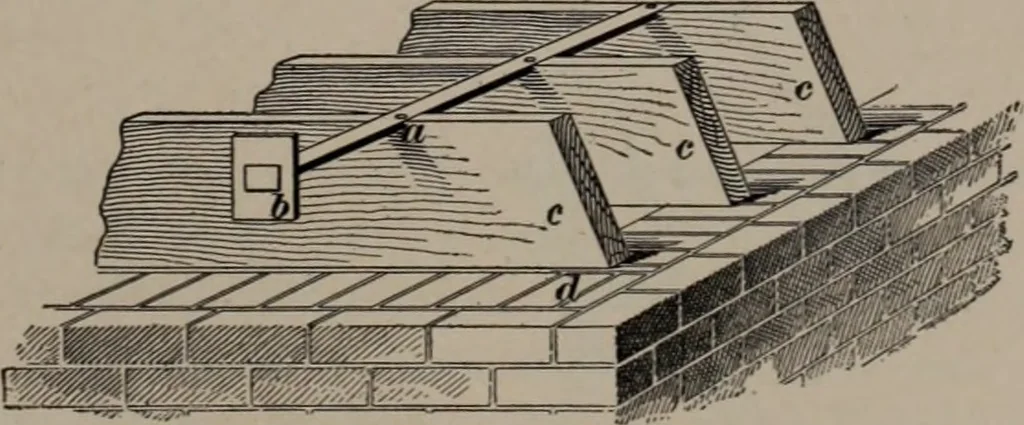

Fig. 25 This style of anchor is made by flattening out a |-inch boltso as to make a 2 X i portion to spike to the joist, and itis provided with a 5-inch cast-iron washer. A nut is placed … Fig. 26 on the outer side of the washer so that the anchor may betightened up if necessary after the walls are built. Anchors should always be spiked to the side of the joistor girder near the bottom, as shown at {a). If the anchor is 36 COMMON BRICKWORK §39 placed near the top of the joist, the…
