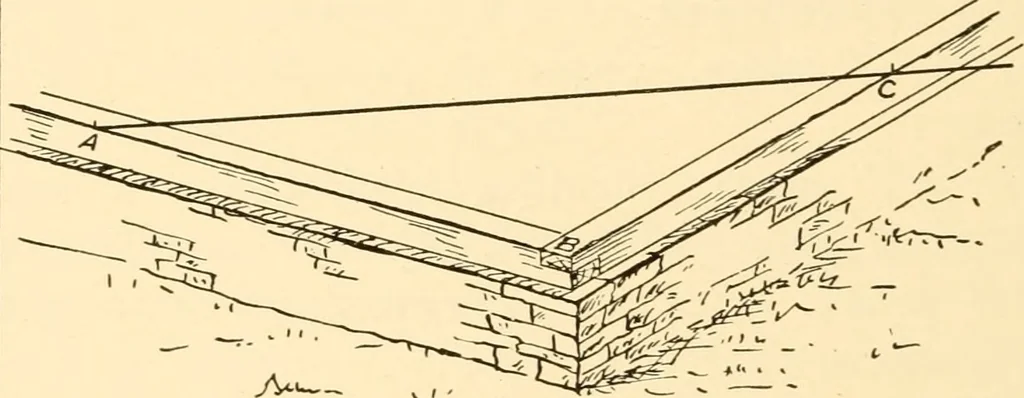

NTIALS OF DRAFTING 30. In order that the sills of a house may be square 6 feet hasbeen measured off along one sill and 8 feet along the other. Nailsare driven as in Fig. 344 at these points. What will be the dis-tance AC measured along a steel tape when the angle ABC is aright angle? 31. A circle… … f^/g. ^^^ 34. Space 4V8 wide, 5V2 high. Draw a line 2iVi6 longand bisect it. See Fig. 32. 35. Space as for problem 34. Draw an angle and bisect it.See Fig. 33. 36. Space as for problem 34. Draw a Une 2^^U^ long anddivide it into five equal parts, by method of Fig. 34. 37. Space as for problem 34.…
