Building stone, lathing, plastering, and tiling, common brickwork, ornamental brickwork and terra cotta : lighting fixtures, use and design of lighting fixtures, architectural design (1909)
International Correspondence Schools · Scranton : International Textbook Co. · leaf 186

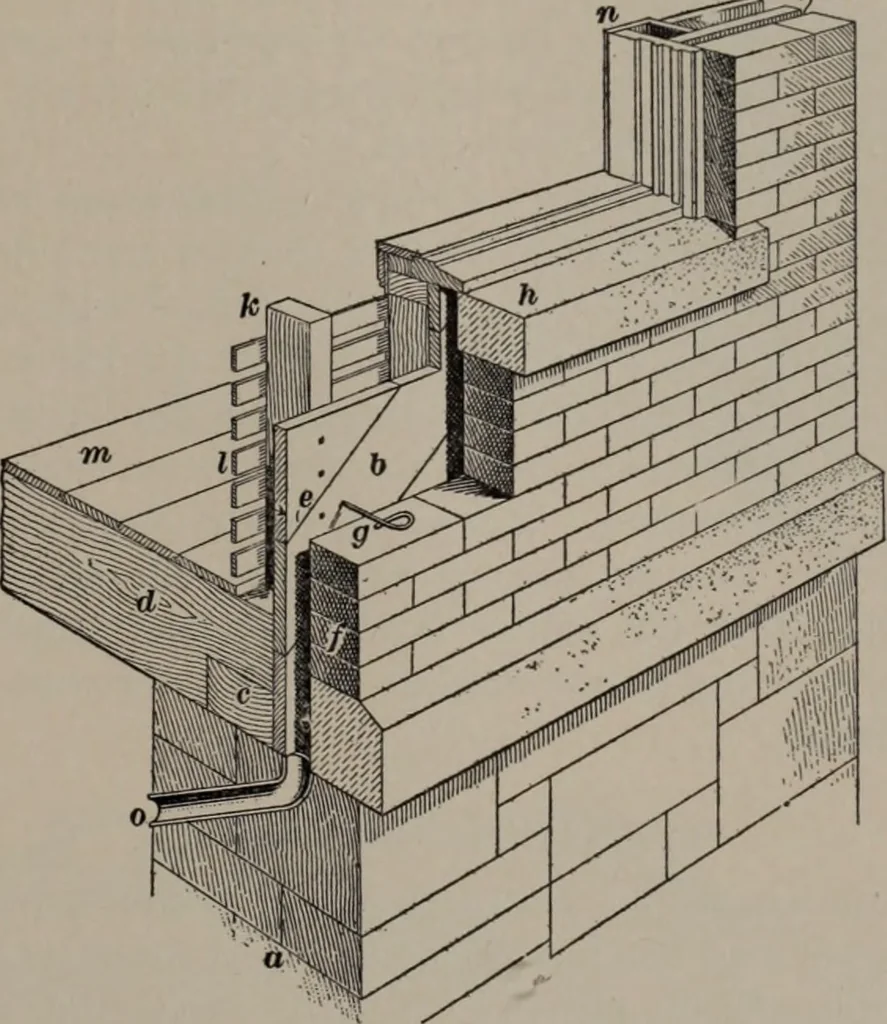

Fig. 3 §40 COMMON BRICKWORK 19 ties should be placed on every other brick in every fifth course of brickwork. Ventilation is usually provided for by means of a 2-inch drain tile at the bottom, as shown at <?, Fig, 4. This drain serves also as an outlet for any moisture that may collect in the… … Fig. 4 12. Fig. 4 shows a section through part of the foundationof a veneered building and the principal features of its con-struction. At a is shown the stone foundation wall, project-ing 6 inches beyond the diagonal sheathing b; the & X 4 sillis shown at c, the 3 X 10 floor joist at d, and…
Building · Building materials · Architectural design · Lighting, Architectural and decorative
