Aladdin Manual of construction : containing practical methods covering every step necessary in the erection of Aladdin houses, barns, garages, etc. / prepared and illustrated by David S. Betcone (1918)
Betcone, David S, Aladdin Company · Bay City, Mich. : Aladdin Co. · leaf 251

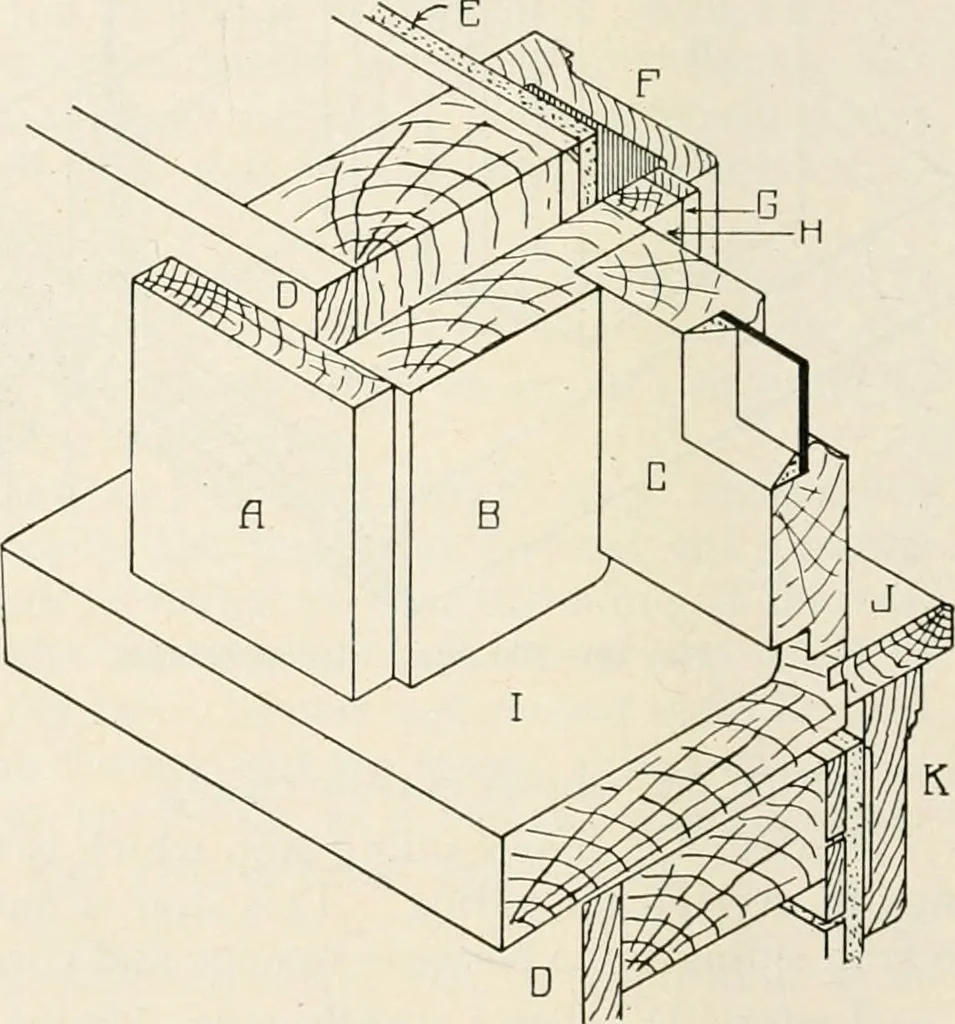

ck rail; first nailing thehead, side jambs and sill together and squaring them up. The two stops shownby letters G and H are to be nailed onto frame if you use lath andplaster and have outside casing overlap siding. Otherwise, they can be usedfor braces to keep frame squared up. In nailing up… … Fig. 202—Casement window frame. Door Frames— Figs. 203 and 204 show dour frames. Fig. 203 shows detail of outside door frame with J/g inch jamb. ALADDIN MANUAL OF CONSTRUCTION 251 Letter A shows outsidewall sheathing. Letter B, outside cas-ings. Letter C, siding stopwhich is to be left out incase…
