Teachers' manual for freehand drawing in Intermediate schools : intended to accompany the drawing-books for intermediate schools (1878)
Smith, Walter, 1836-1886 · Toronto, A. Miller · leaf 260

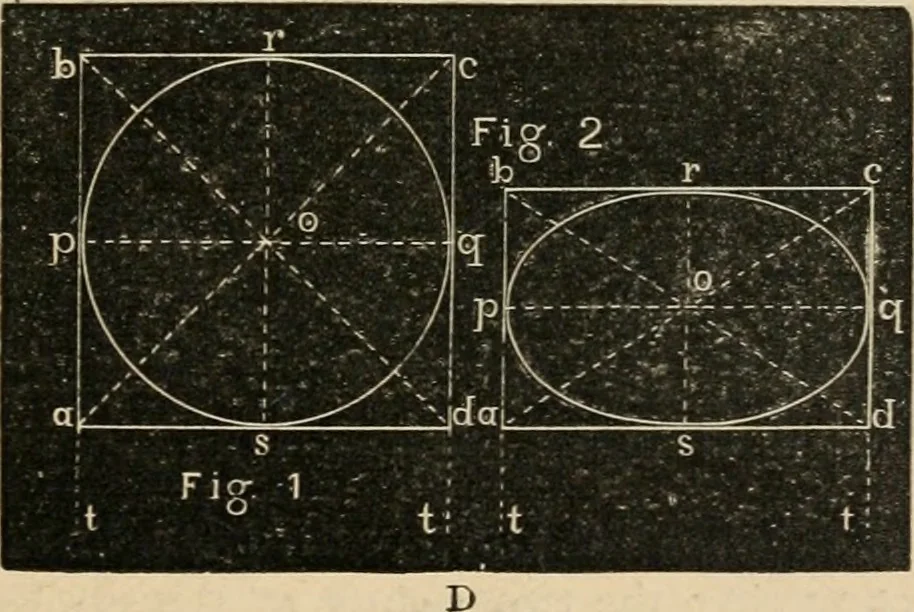

eat an in fi-nite distancein the direc-tion indicat-ed by the dot-ted lines tt,but elevated … 258 TEACHERS MANUAL. somewhat, so as to look obliquoly down upon thesquare and circle. TIjc lines ah, sr, and <Ir, will beforeshortened ; not only that, each half will be fore-shortened alike. The appearance of the whole asthus viewed is shown at Fig. 2. Tlie square becomesin appearance an…
Drawing
