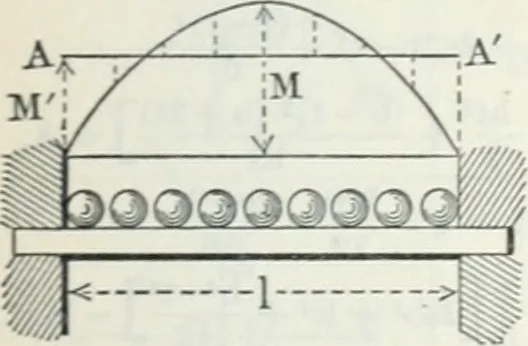

, in inch-lbs.,due toWeights Wi and P respectively. I = Moment of Inertia, in inches*. 1 = Length of Span, in inches. E = Modulus of Elasticity, in lbs., persquare inch = 29 000 000 for steel. W, = Total Safe Load, in lbs., uni-formly distributed, including the weightof beam = Total Safe Load of… … Diagram for Total Load:—Draw WIparabola having M = -%-• Also A A o parallel to base and at a distance WIM = — • The Vertical distances between the parabola and line A Aare the moments for correspondingpoints on beam. Safe Superimposed Load, in lbs., uni-formly distributed, W„ = § WB — Wi. Distance…
