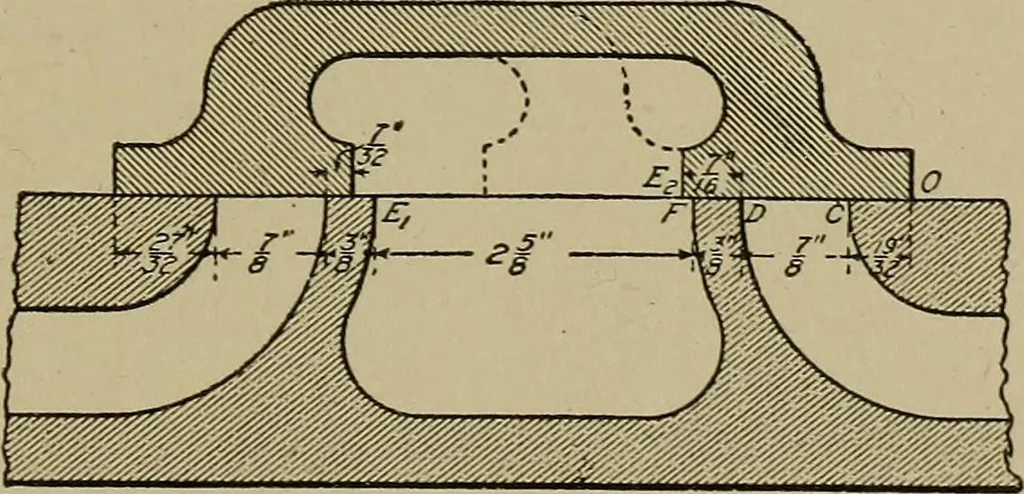

f inchagain for the bridge and meas-ure back ^2 inch, equal to thehead-end inside lap. The portis I inch wide, and the head-end outside lap of §f inch completes the outlineof the valve seat. Reversing Simple Engine. In the operation of a simple engine having a plain slide valve or a piston valve,… … Fig. 33. Section of Valve Designed fromDiagram Fig: 32 38 VALVE GEARS It is proposed to here show fast, how an engine may be reversedwith a direct valve, engine running over; second, with a direct valve,engine running under; third, with an indirect valve, engine runningover; and fourth, with an…
