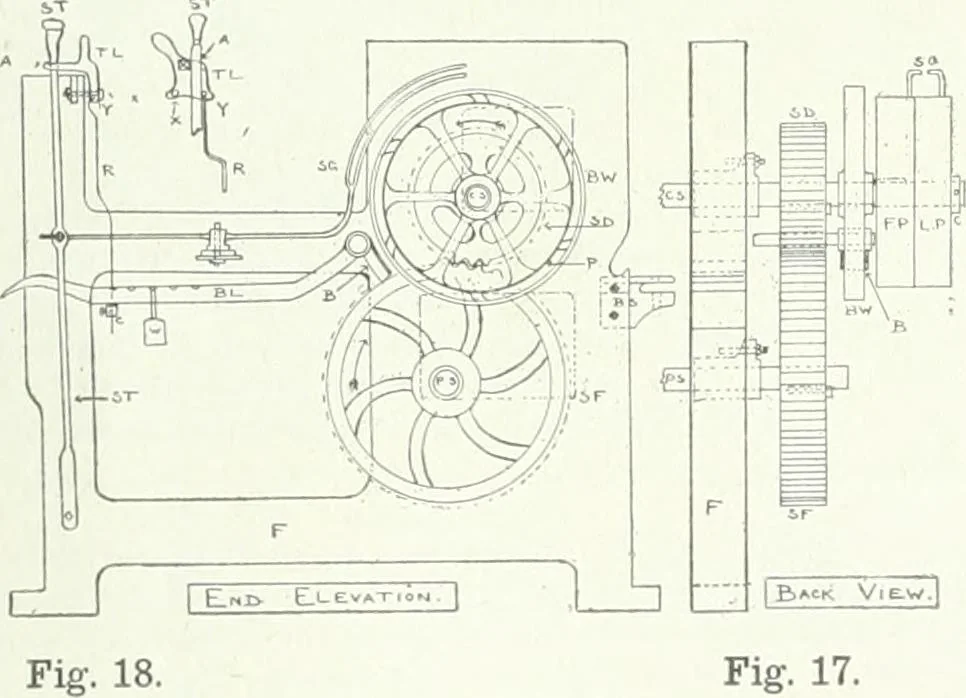

driven loom is one where the strap comesfrom the liiie shaft, directly to the loose and fast pul-leys, which are fitted to the crank shaft of the loom.Figs. 12 and 13. An indirect drive is one where acounter shaft on train wlieels carries the motion to thecrank shaft of loom. Fig. 14. The driving… … Fig. 17. used to arrange the looms in two rows for one lineshaft, then the belts will run thus, one row with openbelts and the other Avith crossed belts. As a rule, thecrossed belts will give a better drive, owing to a largersurface of both pidleys being gripped by the belts.When the loom i)ulleys…
