Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)

American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 265

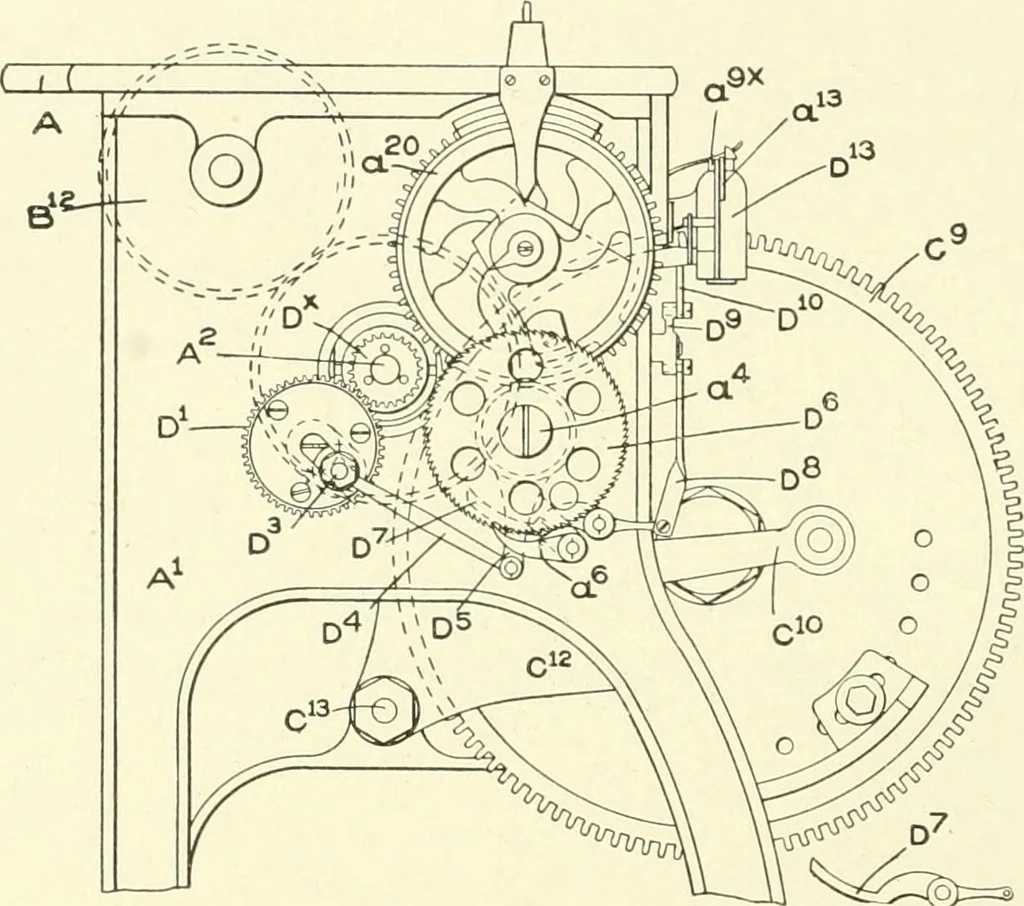

An illustration from Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care, 1909, leaf 265 — itat one end (See Figs. 133 and 138) the pinion D by means of whichmotion is transmitted through the connecting pawl operating mechan™ 239 909 KNITTING ism. This mechanism consists of the gear D; the adjustably mount-ed crank pin D^, which is attached to the Unk D^; the pawl carrier D^,which is… … ^^^^:^>^ Fig. 138. Gears and Ratchets. The crank pin D^ may be adjusted to control the stroke of thepawl, so that it will move the ratchet wheel the distance of one or anydesired numljer of teeth; the greater the movement of the ratchet w^ieelthe shorter the stocking, and vice versa. The pawl…
