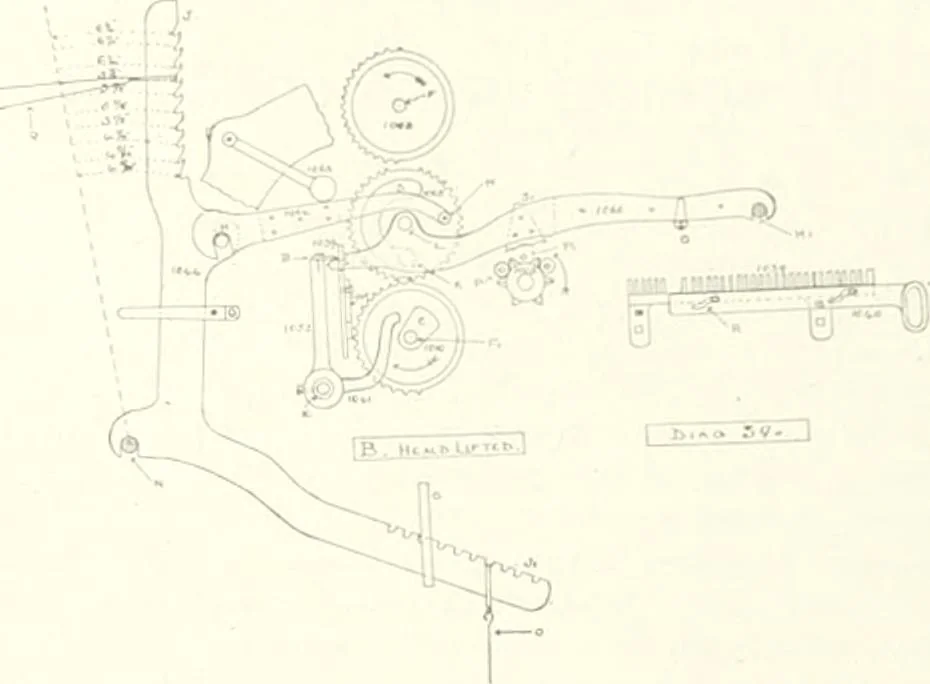

ay be pressed out, and afalse shed be formd, and vibrator or clutch damaged. Diag. 35 illustrates the front view of the handle thatcontrols the clutch L, its chief feature being the pinH, which is fitted into an oi)ening in Frame F, and isheld in position by a stout .spring S. The handle ispivoted… … roller has passed over the point, the pin H holding thelever and clutch L in gear with one of the two bevelsK or K,. Diag. 34a shows the method of passing the lagcylinder conecting shaft through the top Chill 1002,and also end view of plain setting wheels, as shownin Fig. 37 (front view). The…
