A treatise, giving a thorough description of the properties and supply of the fibres, as well as the various processes required for converting wool, cotton, silk from fibre to finished goods, covering both woven and knit goods ... construction of the most modern improvements to preparatory machinery ... accessories relating to construction and equipment of modern textile manufacturing plants .. (1895)
Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia, E.A. Posselt; London, Sampson Low, Marston & Co · leaf 163

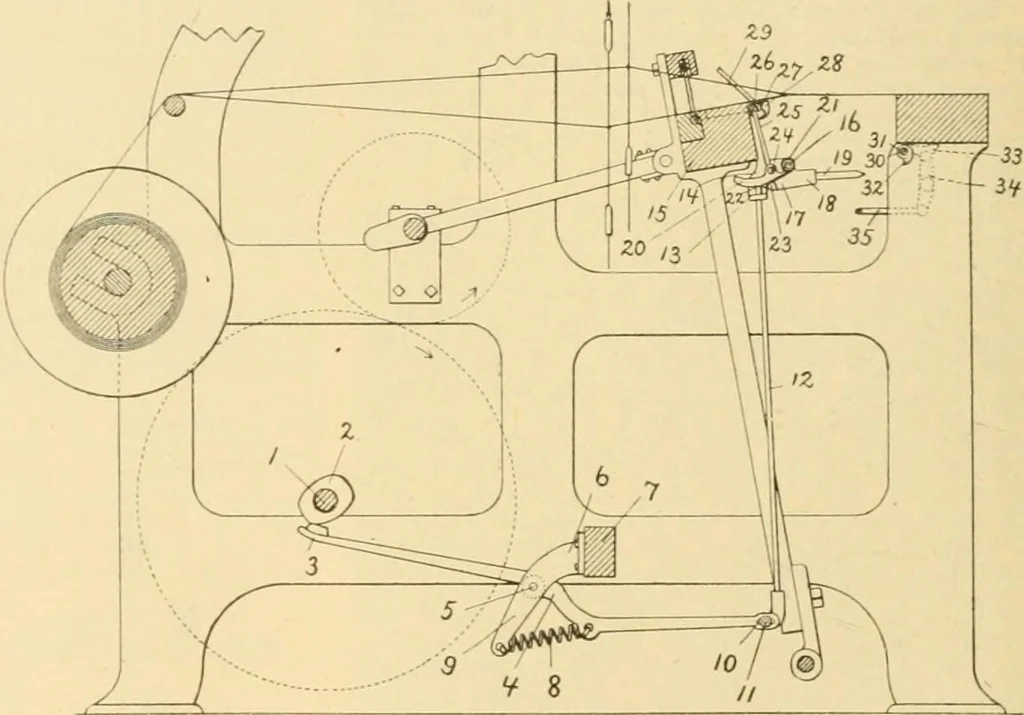

, which extends directly over and is engagedby the upper end of the vertically moving rod 12.On the stud 16 is secured a coiled spring 21, the freeend 22 of which engages a lug 23 on the rockinglever 17, and thus acts to hold the end 20 of saidlever in engagement with the upper end of the rod 12.… … crank 27, as is fast on a rock shaft (not shown) jour-naled in bearings 28 at the upper end of the stand 14.The filling feeler fingers 29, as fast on this rock shaft(not shown), are operated by the crank 27 and movewith said shaft. Extending under the breast beam is a rock shaft 30,having fast…
Textile fabrics · Textile industry · Textile machinery
