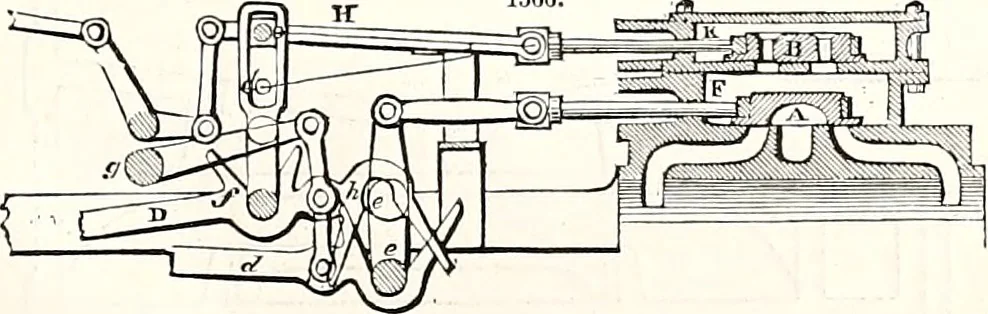

im Transverse sect inn. Perpendicular section. the travel of the supplementary valve may be lengthened orshortened, so as to cut off the steam at any part of the stroke. Ais the common valve, and F the valve-chest; B i3 the supple-mentary valve, which is a solid block with two perforations, which,
