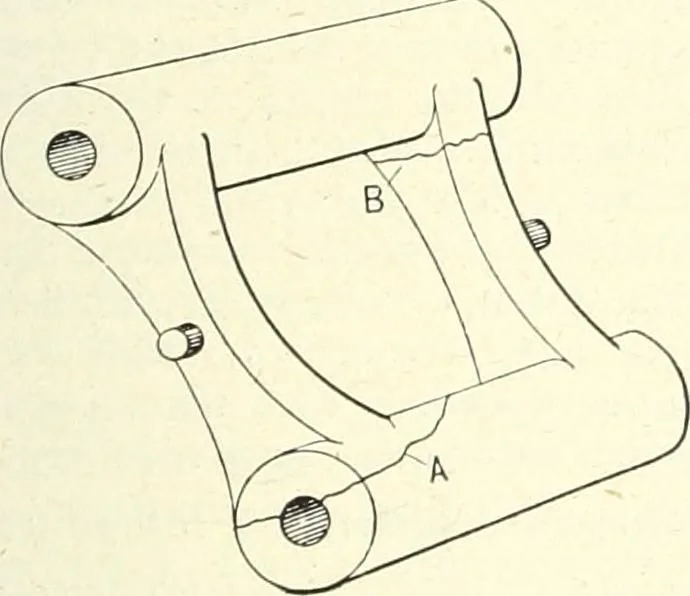

ach cylinder, which were 8 inches, the idler beingfitted upon one end by one pin and a taper frictionupon the other end of each pin. By giving this idlerframe a twisting sideways movement, one or the otherof the taper frictions was brought into action. It was decided to forge two bands and to… … Fig- 1 Broken idler frame on a woodworking machine. length was carefully measured with a wheel and thebands cut off and welded up. Then they were fittedand shrunk on as shown by Fig. 2. One of the cracks marked A in this drawing cor-responds to the same crack shown in Fig. 1. Theother crack B is…
