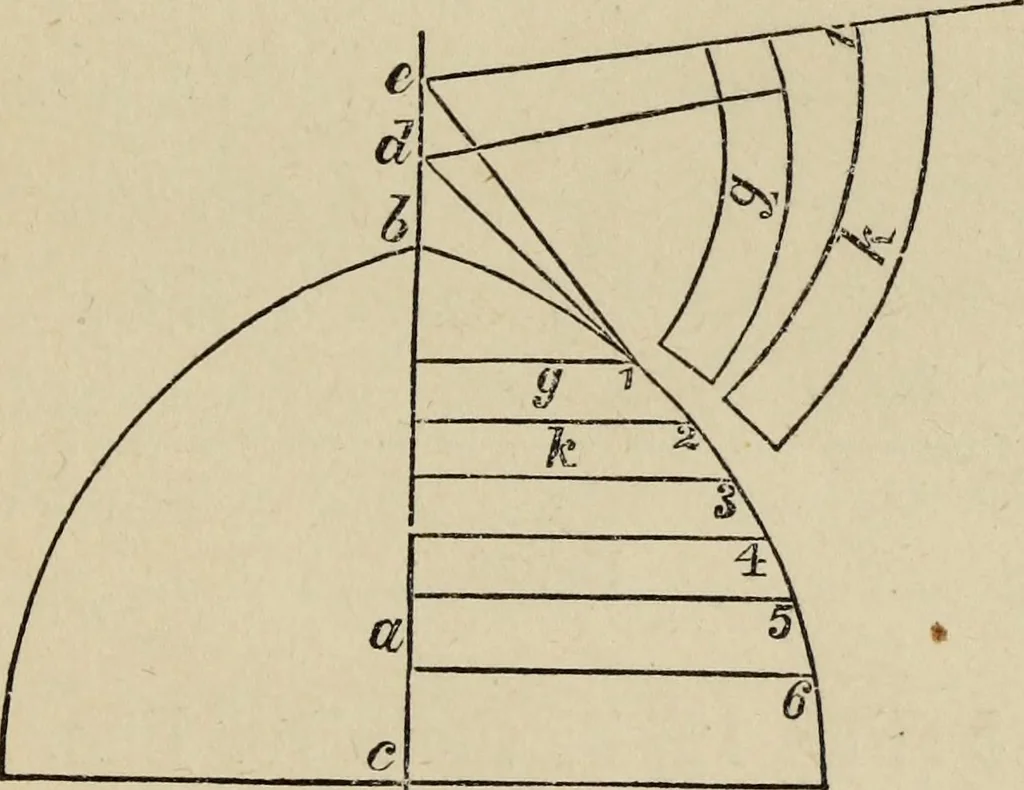

extend the line of theside c till it meets the line & at <^ / on 6? fora centre, with 1 and 2 for a radius, describe HAND-BOOK. 21 which will be the shape of the base re-quired; /*will be the joint required for thesame. 14. To find the shape of horizontal cover-ing for circular domes. The… … Fig. 11. Draw the line a through the centre of thedome (Fig. 11); divide the height from h to 22 THE carpenters G into as many parts as there are to becourses of boards, or tin. Through 1 and 2draw a line meeting the centre line at d jthat point will be the centre for sweepingthe edges of the board…
