Radford's cyclopedia of construction; carpentry, building and architecture. Based on the practical experience of a large staff of experts in actual constrcution work (1909)
Johnson, Alfred Sidney, 1860-, Radford, William A., 1865- · Chicago Radford Architectural Co · leaf 280

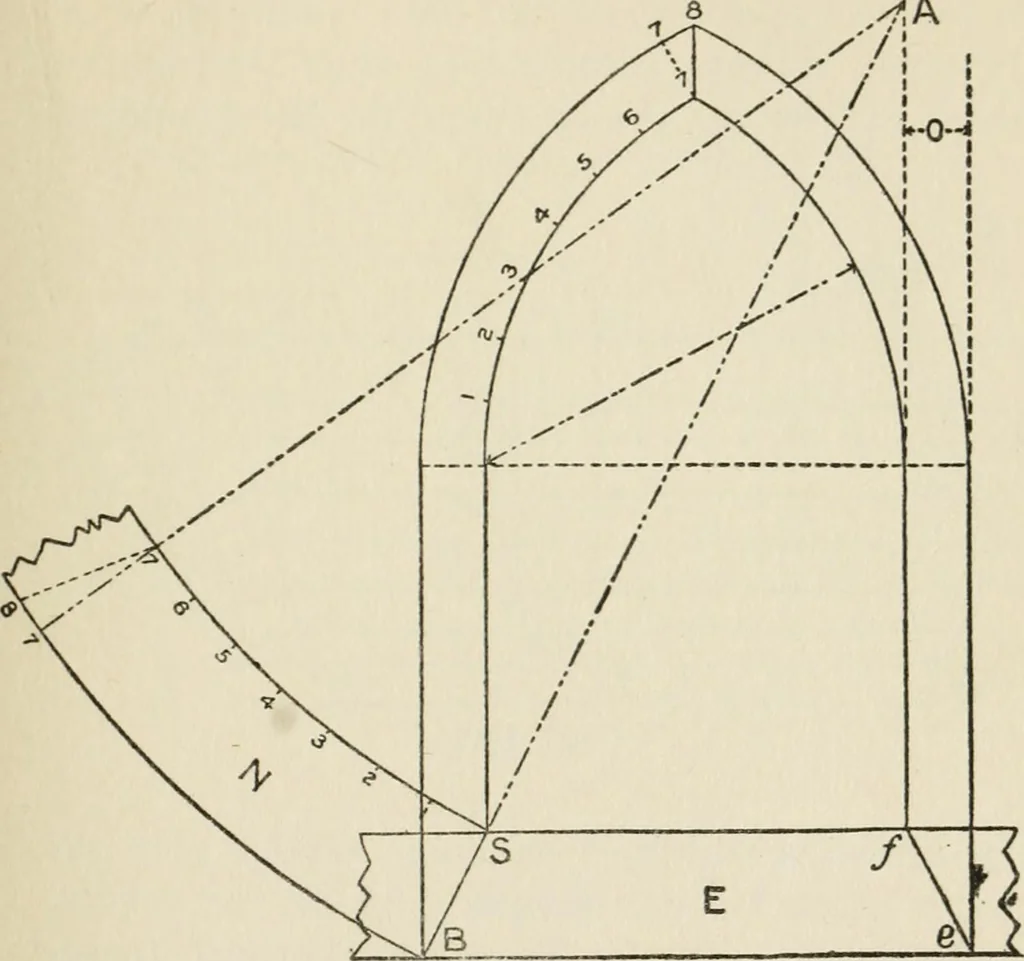

FIG. 188 gothic jamb. E shows the horizontal sill^ ef thesplay, FA the line of the inside of jamb, o thedifference between front and back edges of jamb, PRACTICAL CARPENTRY 245 BA the line cf splay. At the point of junction ofthe lines BA, FA, set one point of the compasses,and with the radius AB… … FIG. 189 and n will be the veneer required. This will givethe required shape for either side of the head. To get the contour or outline for a raking mould-ing, proceed as shown in Fig. 190. The horizontalmoulding is divided into any number of parts,equal or unequal, as shown at abcdefg. The lineAC…
Architecture · Building
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
