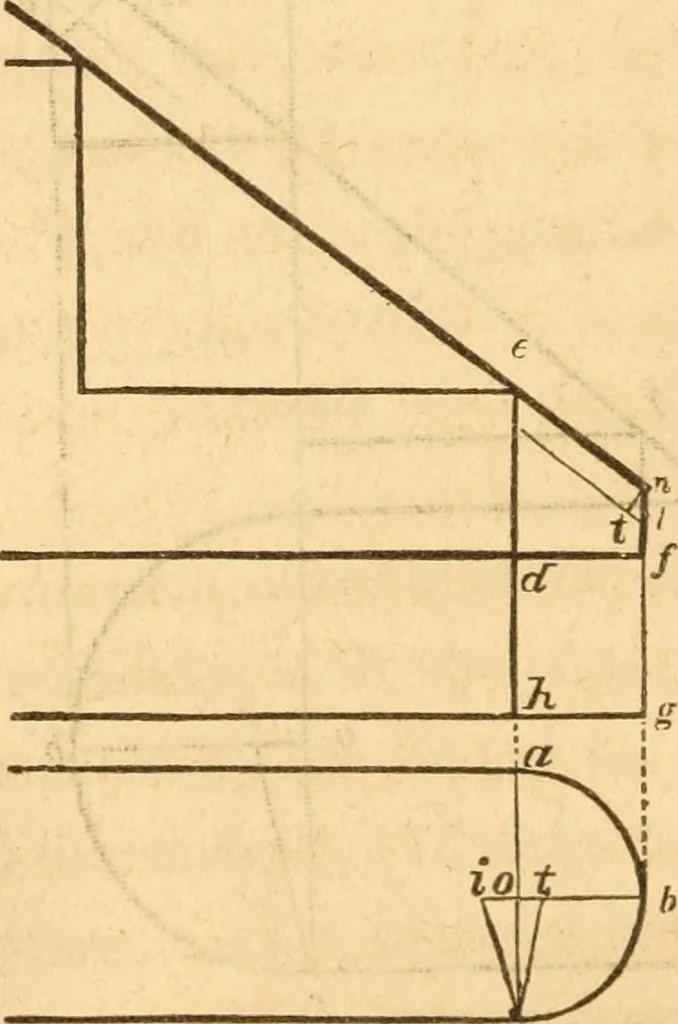

Fisr. 263. draw c ^, at right angles to e c, and equal to c ^ at Fig, 264 ; fromt, draw ^ ^, parallel to c e, and make 11 equal to ^ Z at Fig. 264;complete the parallelogram, eels, and find the points, o, o, o, asbefore: then describe the circles and complete the mould as inFio\ 262. The difference… … Fig. -^eu c 370._Oase 3.— Where the rake meets the level. In Fig. STAIRS. 215 266, a b cis the plan of a line passing through the centre of therail around the cylinder as before, and J and e is a vertical sectionof two steps starting from the floor, h g. Bisecte hin d, andthrough d, draw df,…
