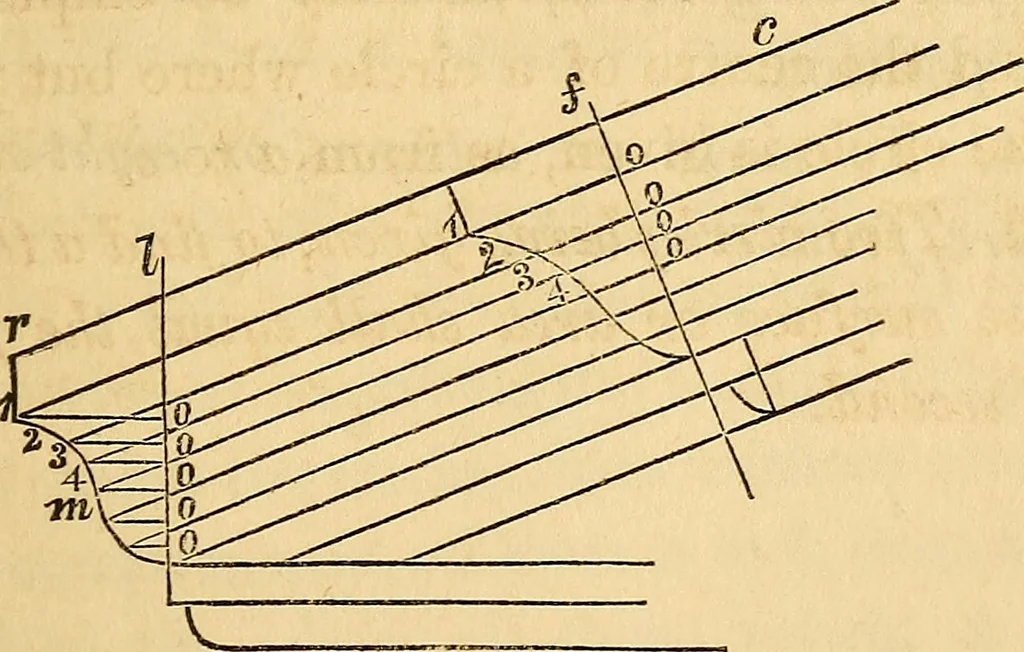

Let a and o (Fig. 19) be the given circles.Place the diameter of each at right angles tothe other as at 3, connect the ends at c andd, then c d will be the diameter of thecircle required. 23. To find the form of a raking crownmoulding. … 30 THE CARPENTERS m (Fig. 20) is the form of the level crownmoulding; r c is the pitch of the roof.Draw the line I, which shows the thicknessof the moulding. Draw the lines ooo, par-allel to the rake. Where these lines strikethe face of the level moulding, draw the hor-izontal lines 1, 2, 3,…
