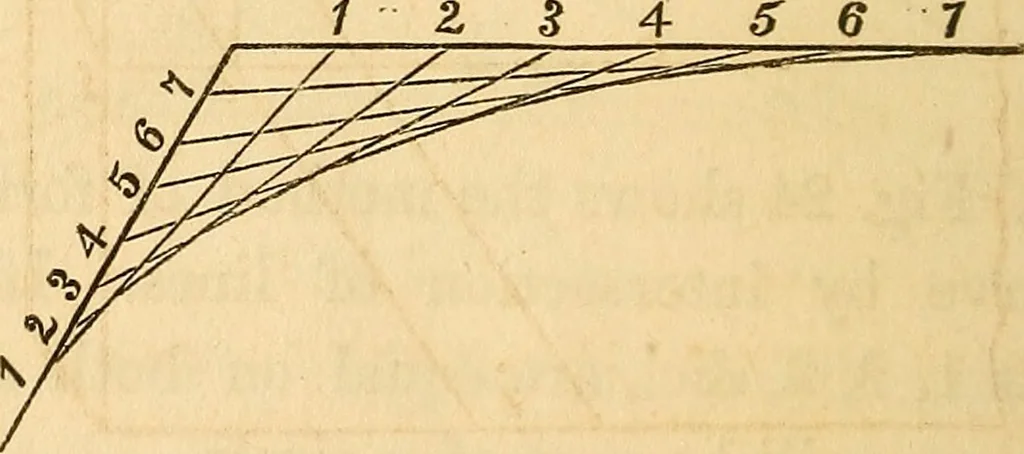

Fig. 25. and proceed as in Fig. 24. The closer thepoints 1, 2, 3, &c, are together, the moreaccurate and clearly defined will be thecurve, as at d. 29. Fig. 26 shows the parabolic curve. … Fig. 26. HAND-BOOK. 35 This is the form of the curve of the Gothicarch or groin. 30. To find the joints for splayed work,such as hqpjpers, trays, dhc.
