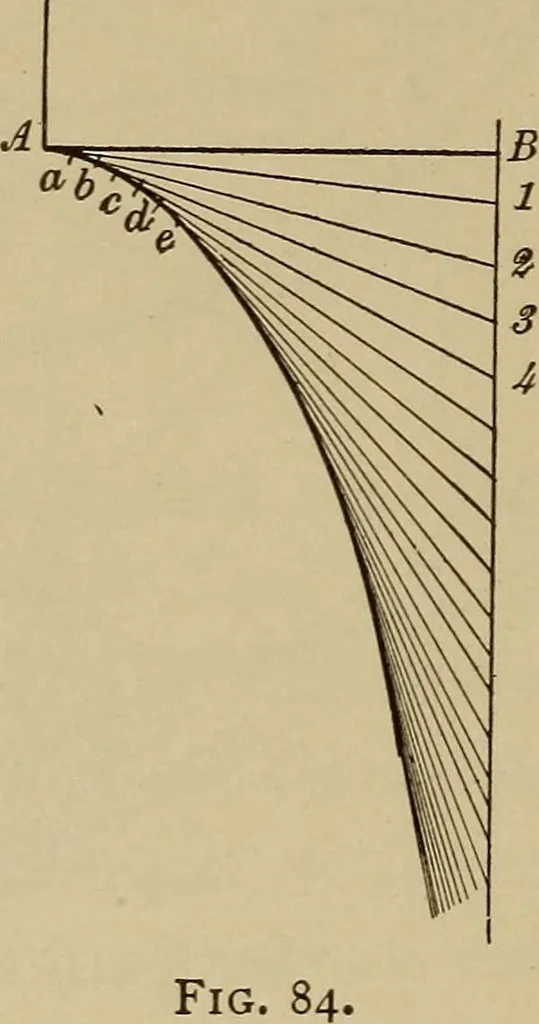

WING. FiS.b I2i To Draw Schieles Anti-friction Curve.—Let AB be the radius of the shaft and Bi, 2, 3, 4, etc., itsaxis. Set off the radius AB on the straight edge of a pieceof stiff paper or thin celluloid and placing the point B on thedivision 1 of the axis, draw through point A the line Ai.Then…
