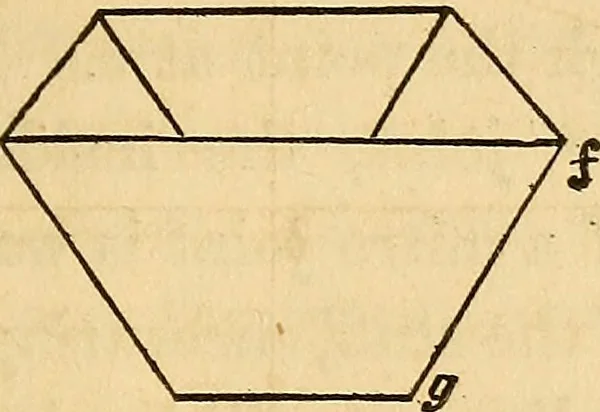

Fig. 26. HAND-BOOK. 35 This is the form of the curve of the Gothicarch or groin. 30. To find the joints for splayed work,such as hqpjpers, trays, dhc. … Fig. 27. Take a separate piece of stuff to find thejoints for the hopper, Fig. 27. Strike thebevel / g, the bevel of the hopper, on the / hX7\£ e / /e L / i / Fig. 28. 36 the carpenters end of the piece (Fig. 28); run the gauge-mark c fromy / then square on the edge froma, or where you want the…
