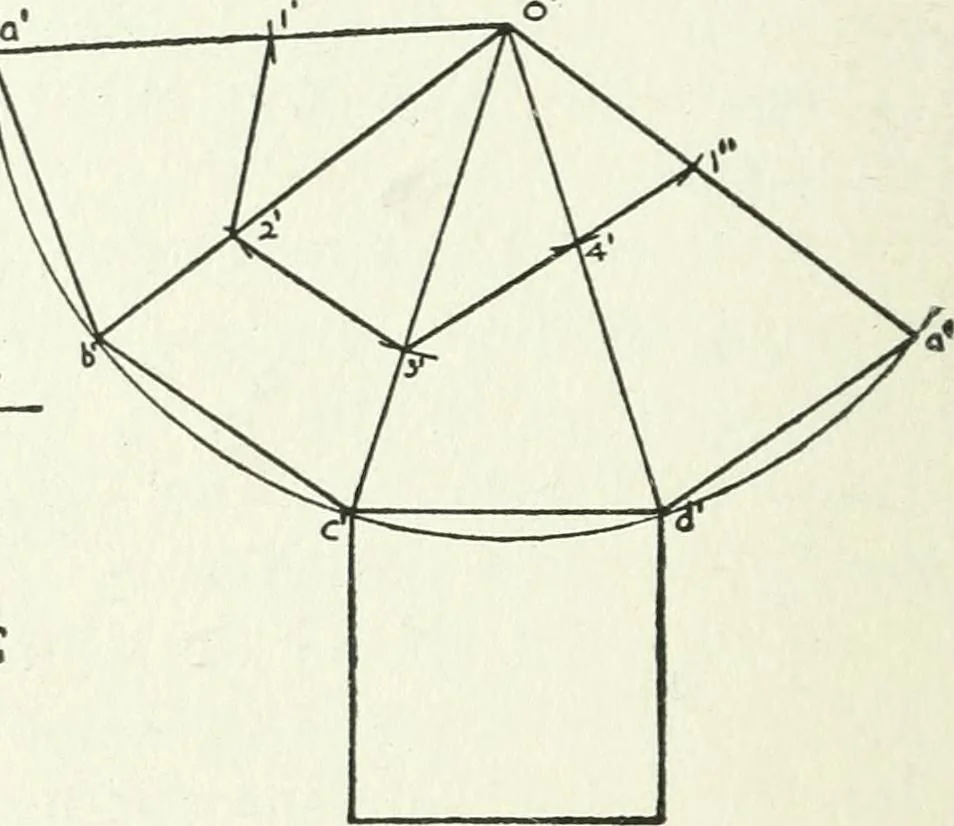

fy^ / \ bt ^ k / ^ C» … Fig. 64. Square Pyramid in First Angle, Intersected by a Plane.Development of Pyramid Shown at Eight. It is then necessary to find the true lengthof the sides of the triangle oab. The H projec-tion o-b** does not show the true length of theline; neither does the V projection o-b. Letthe pyramid be…
