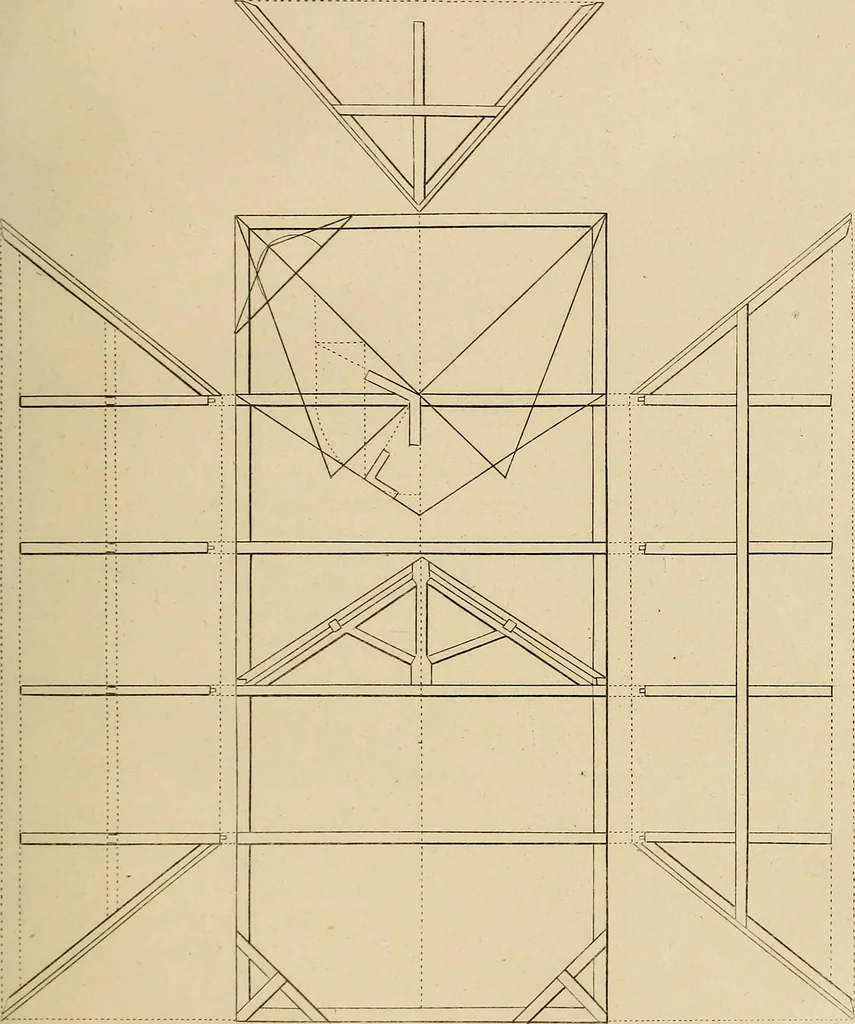

el of the jack rafter. And the bevel at A, that is, the top of a com-mon rafter, is the down bevel of the jack rafter. At the bottom is shown the manner of cocking down the tie beam upon the wallplate; the proper size of the cocking is figured. 46 ROOFING. PLATE 34. This plate shows the manner of… … Flute 35.
