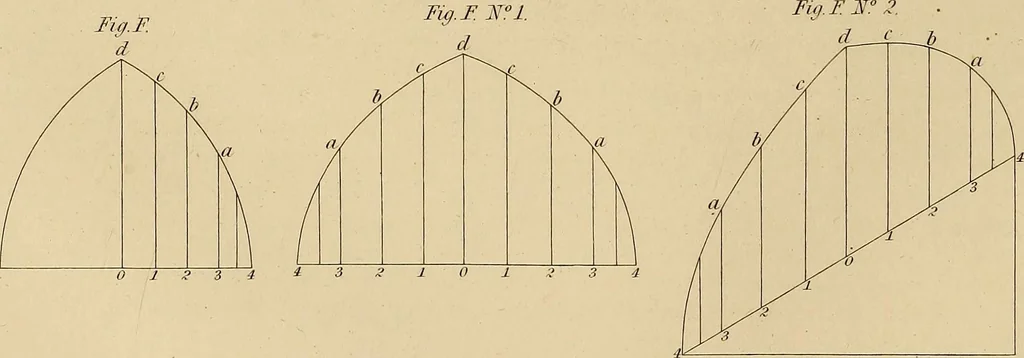

LININGS FOR SOFFITS AND TRACERY. 27 PLATE 15. To draw the lining of a cylindrical Soffit, cutting right in a Wall which does not standperpendicular to the ground to a level Base. Fig. A. Let a e at D be the level of the ground, a I the inclination of the wall, equal to theradius of the cylinder;…
