The carpenter's new guide; a complete book of lines for carpentry and joinery, treating fully on practical geometry, soffits, groins, niches, roofs, and domes, and containing a great variety of original designs. Also a full exemplification of the theory and practice of stair building, cornices, mouldings, and dressings of every description. Including also some observations and calculations on the strength of timber (1854)

Nicholson, Peter, 1765-1844, Davis, Noah Knowles, 1830- ed, Sloan, Samuel, 1815-1884, ed · Philadelphia, Lippincott, Grambo & Co. · leaf 138

An illustration from The carpenter's new guide; a complete book of lines for carpentry and joinery, treating fully on practical geometry, soffits, groins, niches, roofs, and domes, and containing a great variety of original designs. Also a full exemplification of the theory and practice of stair building, cornices, mouldings, and dressings of every description. Including also some observations and calculations on the strength of timber, 1854, leaf 138

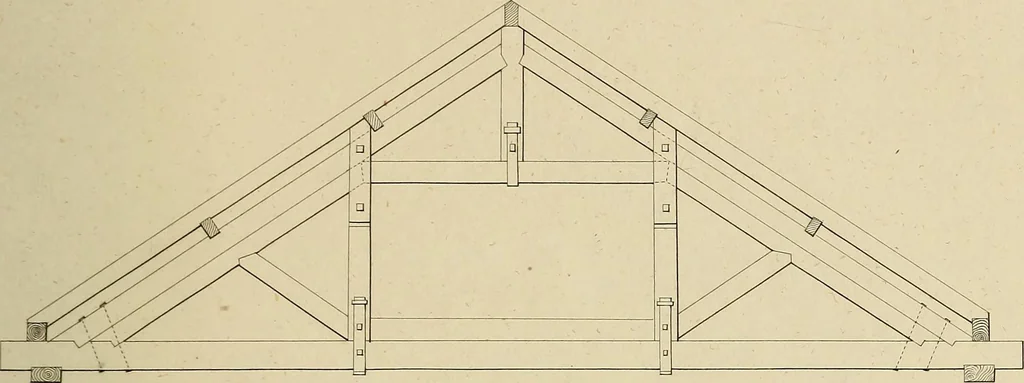

supported by two queen-posts, so as togive room for a passage or apartment in the roof It is calculated for a span of forty or fiftyfeet. are 54 ROOFS. PLATE 39. Fig. 1. This roof is somewhat similar to the last, but essentially different in the con-struction of the queen-posts. The span is forty… … Fu/.l.
