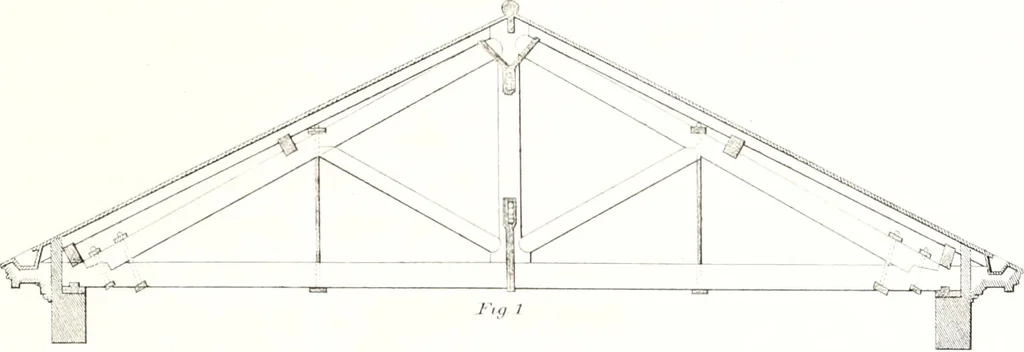

ns of the tic-beam and king-post; shows the mode of their connection by means of the stirrup;and the fnoting of the braces. Fig. 5 shows a portion of the tie-beam ; the heel of the rafter ;the lower pnrlin ; the mode of forming the gutter ; and the common-rafter, with tlie sheathing, etc. TABLE or…
