The carpenter's new guide: being a complete book of lines for carpentry and joinery (1848)
Nicholson, Peter, 1765-1844. [from old catalog], Johnston, William, architect. [from old catalog] · Philadelphia, Grigg, Elliot and co. · leaf 221

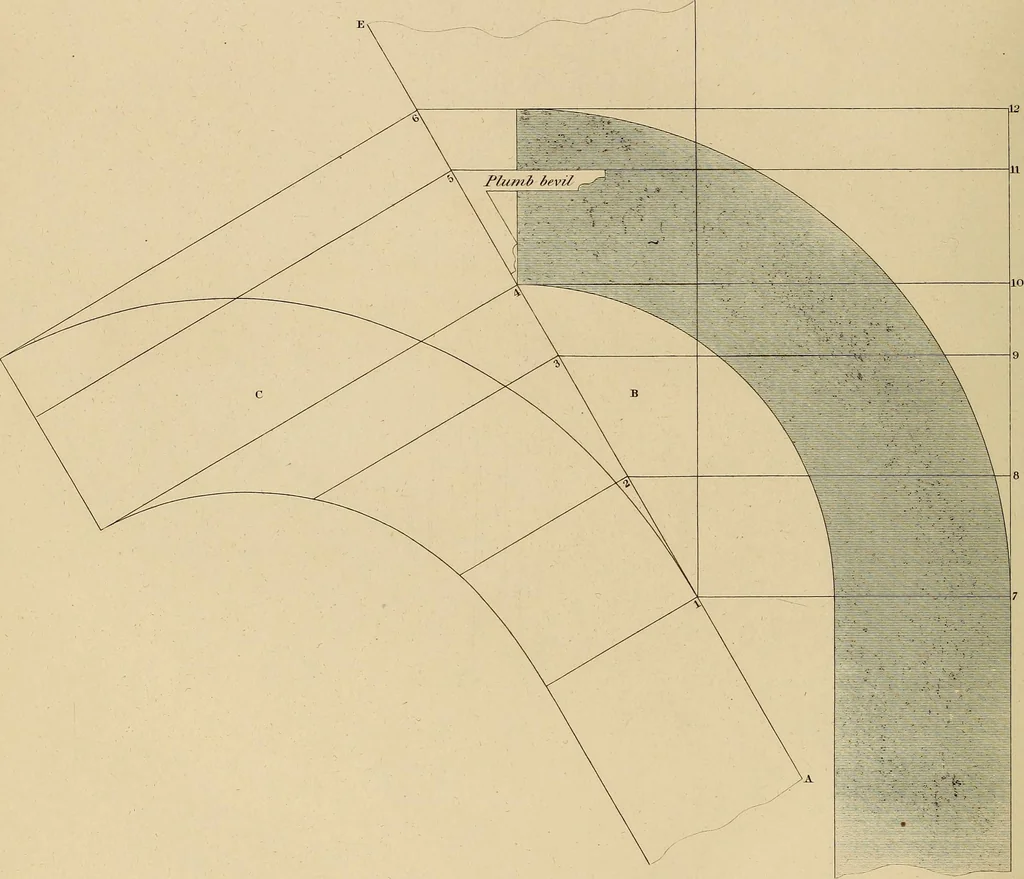

Plate 64. … HAND-RAILING. 89 PLATE 64 Face mould for the twist of the scroll. B the pitchboard. Draw a sufficient number of ordinates through the plan, and from the points 1,2, 3, &c,draw ordinates at right angles to the line A E, and transfer the distances 1, 7, 2, 8, &c, uponthese lines, and trace…
Carpentry
