Carpentry made easy, or, The science and art of framing, on a new and improved system : with specific instructions for building balloon frames, barn frames, mill frames, warehouses, church spires, etc., comprising also a system of bridge building, with bills, estimates of cost, and valuable tables ... (1857)

Bell, William E · Philadelphia : Howard Challen · leaf 89

An illustration from Carpentry made easy, or, The science and art of framing, on a new and improved system : with specific instructions for building balloon frames, barn frames, mill frames, warehouses, church spires, etc., comprising also a system of bridge building, with bills, estimates of cost, and valuable tables ..., 1857, leaf 89

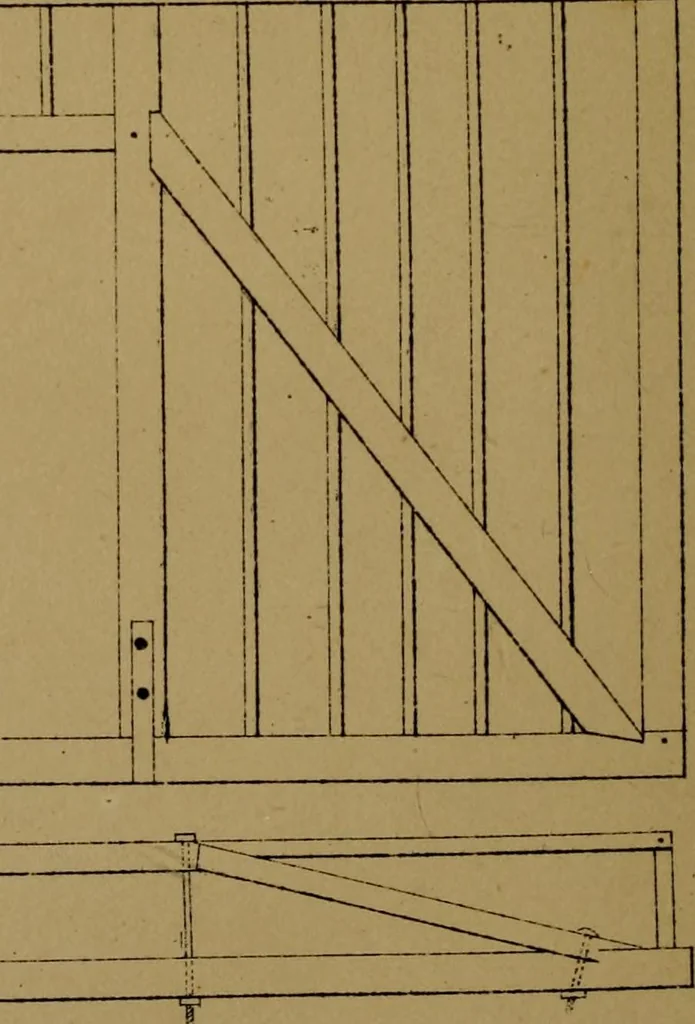

Fii/.d … Thi-(..Inmlurai*Saii. FhiU PLATE 11. Plate 11 is designed to represent two modes of framing braces in aself-supjtorting or trussed partition. Where the span is considerable, therebeing no support beneath except the exterior wall, some mode ofbracing is indispensable. These plans are exhibited as…
