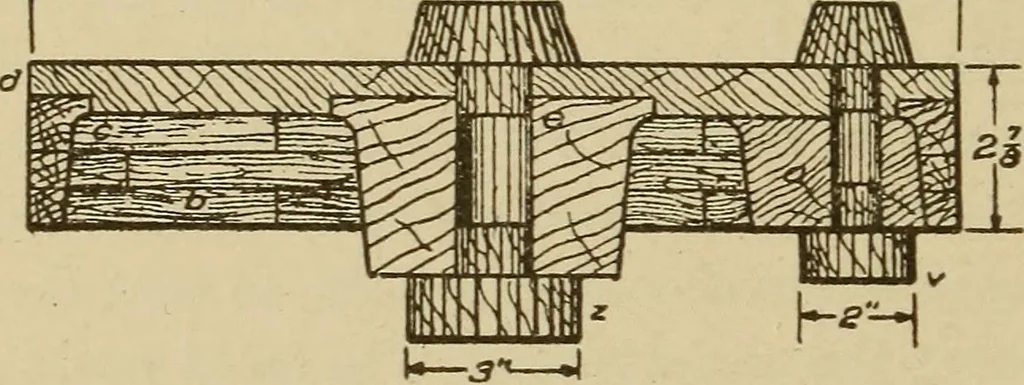

rn the rabbet in theweb at d and chuck thecenter at e, as shown inFig, 195.Rim, The first layer of segments for the rim or flange are tohave the inner edge fitted into the rabbet, and are made wide enoughto make the wood fillet c. The other layers of the flange will not berequired to be as wide,… … Fig. 195. Section of Pattern for Disk Crank I Holo Wood Screws
