Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 120

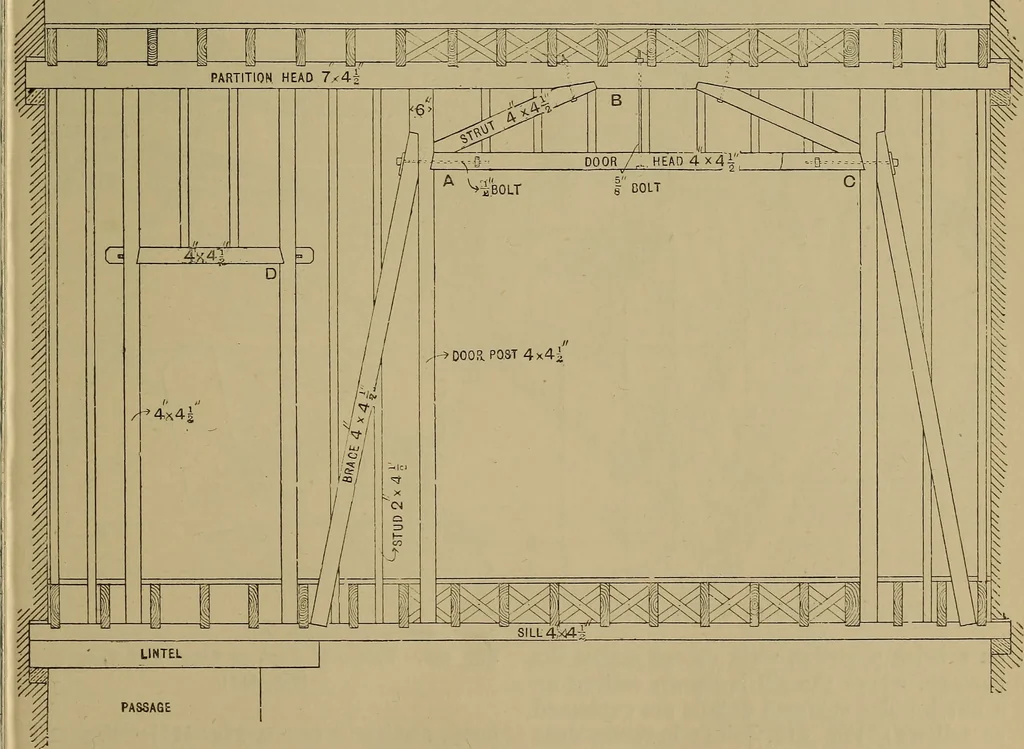

front and the backroom and the bnding of the same house,providing a door opening on to the landing7 ft. high by 3 ft. 4 in. wide, and openingfor folding doors to back room, 9 ft. highby 9 ft. wide ; the storey is assumed to be11 ft. high clear of the joists. Particulars ofthe various joints are… … Fig. 411.—Trussed Cross Partition Frame with Two Openings and to support Upper Floor. 102 CARPENTRY AND JOINERY. this kind of partition frequently forms the Fig. 413, joints between partition head andsupport of floors, as shown in Fig. 411. It top of door post and strut (see b, Fig. 411).has-been…
Carpentry · Joinery
