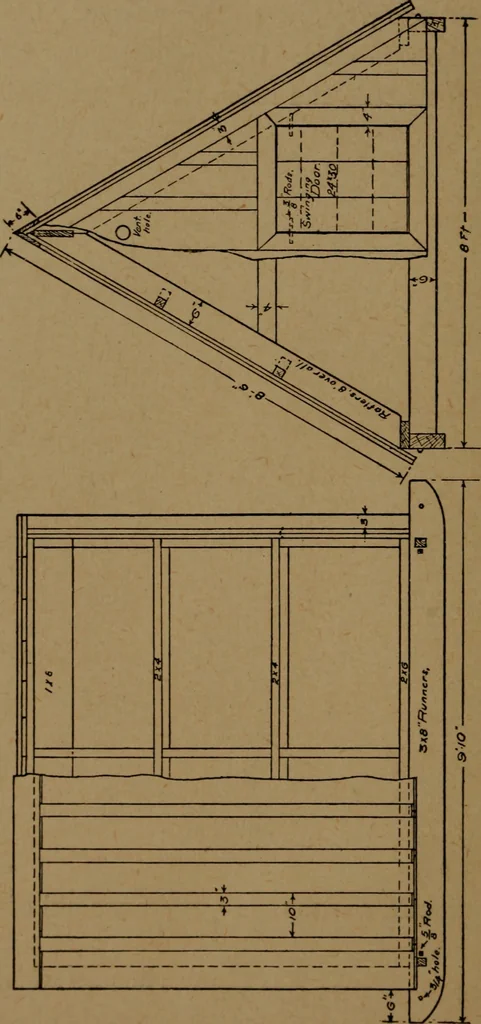

FlGURE 30. sions. Underneath the top view, print the bill of materialas already directed. Exercise 7. — Make a side and end view of either a work-bench (Fig. 29) or a sawhorse (Fig. 30). The workbench tobe drawn to a scale of i= i^ Often, when objects are 5° ESSENTIALS IN MECHANICAL DRAWING … o SHORT COURSE IN DRAWING WITH INSTRUMENTS 51 drawn that naturally rest on the floor, a heavy line isdrawn to represent the surface of the floor. Border line11 X 15. Place title above the views. The sawhorseshould be drawn to the scale, 3 = i. Draw a heavyline to represent the floor.
