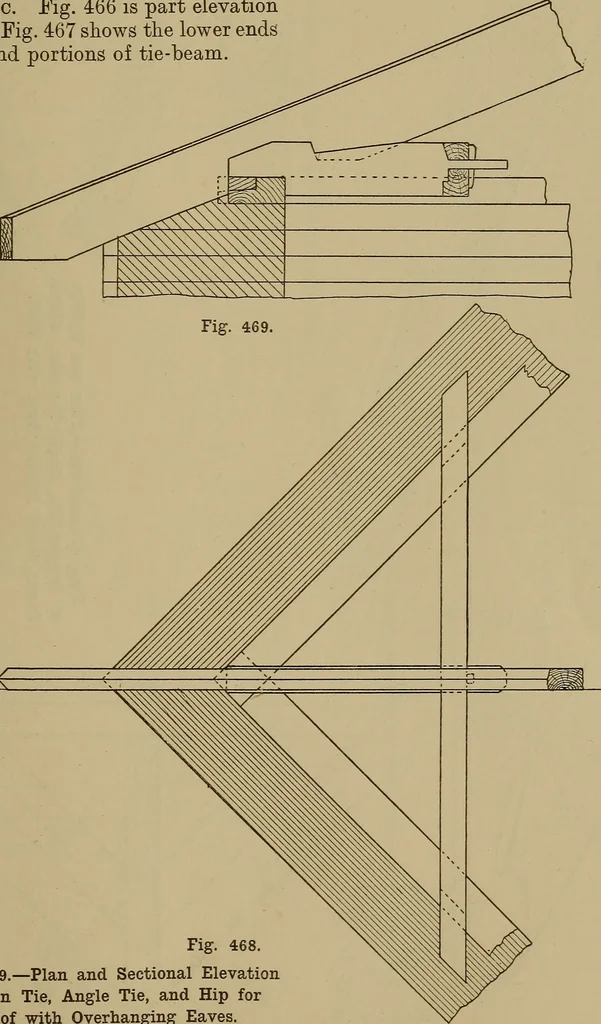

f king-posts and straps and bolts || at head and at c. Fig. 466 is part elevation of main truss. Fig. 467 shows the lower ends of king-posts and portions of tie-beam. Dragon Tie at Foot of Hip Rafter. A dragging tie, or dragon tie or beam(Figs. 468 and 469), is a framework at thelower end of a hip… … Fig. 468. Figs. 468 and 469.—Plan and Sectional Elevation shewing Dragon Tie, Angle Tie, and Hip for Angle of Roof with Overhanging Eaves. 126 CARPENTRY AND JOINERY.
