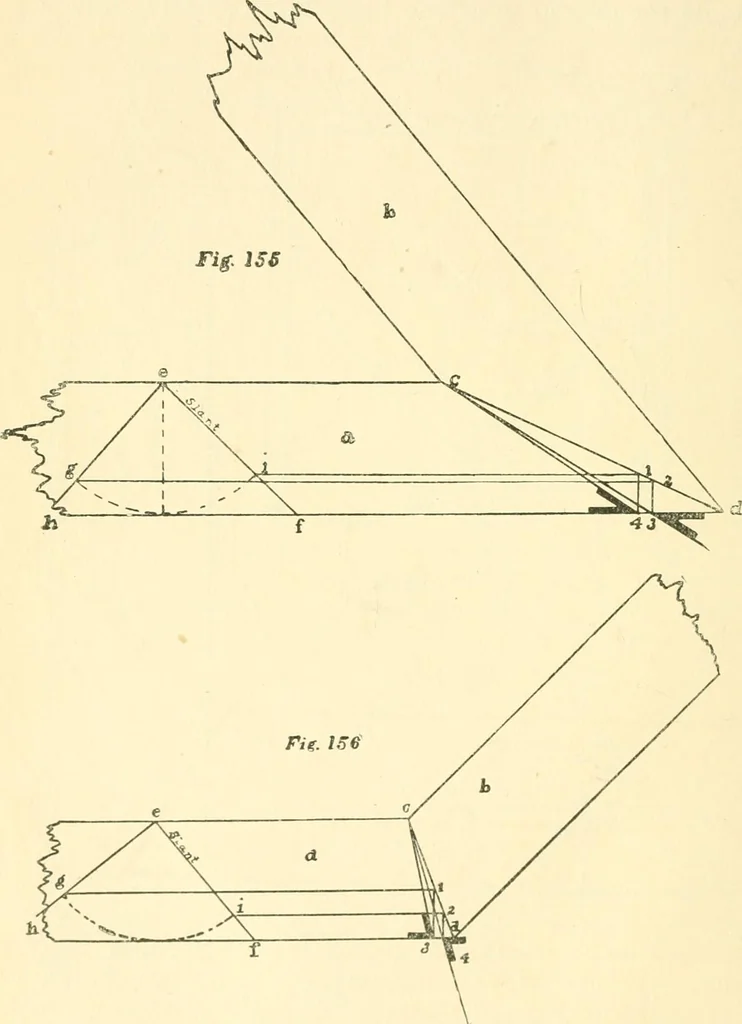

Jb\ ^. F^i^- 154 equal to the slant of the sides of the hopper and draw A eat rig-ht angles to e f; with c as centre draw an arc touchingthe base line, thus finding points^and i; from these point? io8 GUIDE AND ASSISTANT draw lines parallel to the base line, touching c d at i and2; let fall… … and 4; connect c and 3, thus giving the bevel for the faceof the work ; then connect c and 4, thus finding the bevelfo- the edge of the work, as shown in Figs. 154, 155. 156. FOR CARPENTERS AND MECHANICS. 109 137—To Find the Bevels of a Hopper of anyNumber of Sides Having Butt Joints.—Draw a…
