Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 155

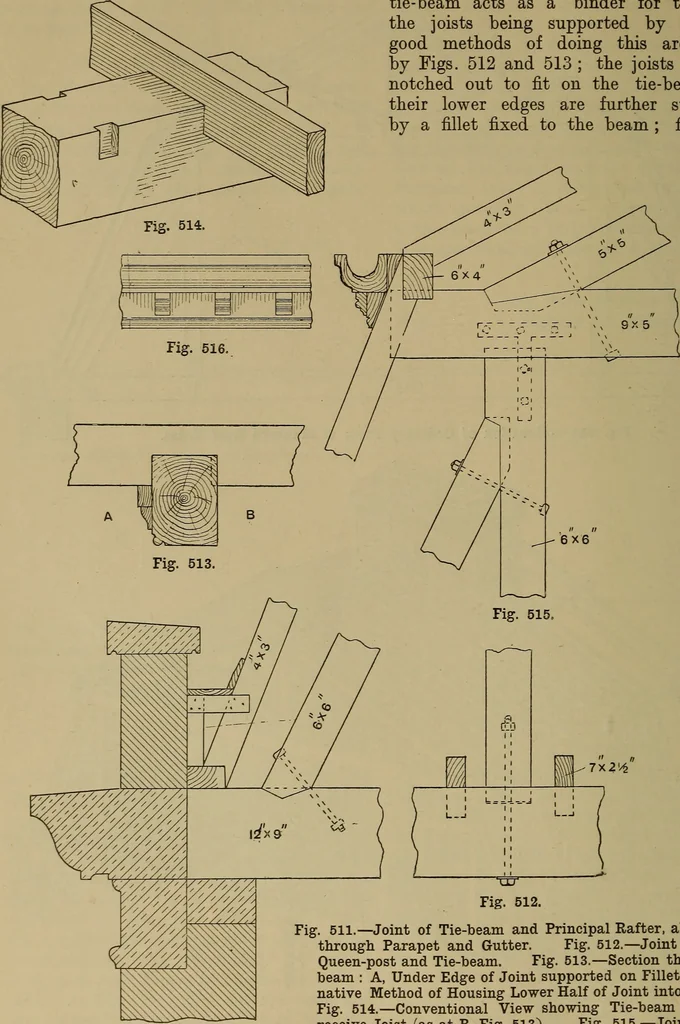

Fig. 510.—General View showing Timbering of Mansard Roof, with Main Tie-beam acting as Floor Binder. 136 CARPENTRY AND JOINERY. tie-beam acts as a binder for the floor,the joists being supported by it. Twogood methods of doing this are shownby Figs. 512 and 513 ; the joists at a arenotched out to… … Fig. 511.Gutter, Fascia and Dental Brackets. Fig. 511.—Joint of Tie-beam and Principal Rafter, also Sectionthrough Parapet and Gutter. Fig. 512.—Joint at Foot ofQueen-post and Tie-beam. Fig. 513.—Section through Tie-beam : A, Under Edge of Joint supported on Fillet; B, Alter-native Method of…
Carpentry · Joinery
