Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 190

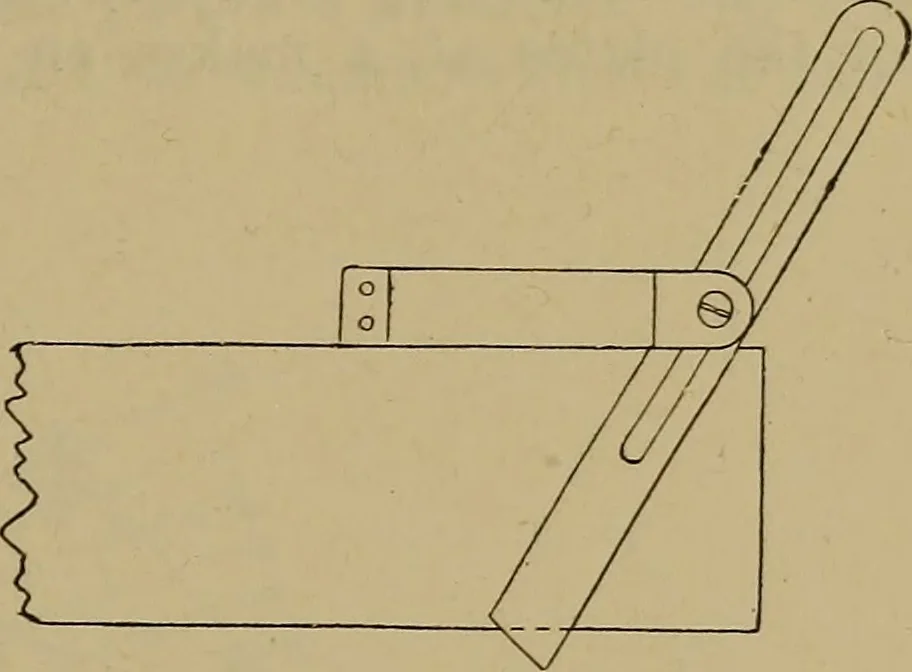

Applying Bevel to Edge of Rafter. quired. To make the construction quiteclear, cut out a piece of card the shape ofabd; fold the horizontal plane and thevertical plane at right angles to each other,and place the pieces of card in position, as 8 shown at Fig. 642. It will then be seenthat the bevel… … Fig. 645.—Applying Bevel to Side of Rafter. described below. Set out for the bevelsas shown at Fig. 643, the bevel at a beingfor the vertical cut, and that at b for thebevel to be applied at the edge of the rafter.The bevels can be set from the drawingas shown at Fig. 643. Fig. 644 shows thebevel b…
Carpentry · Joinery
