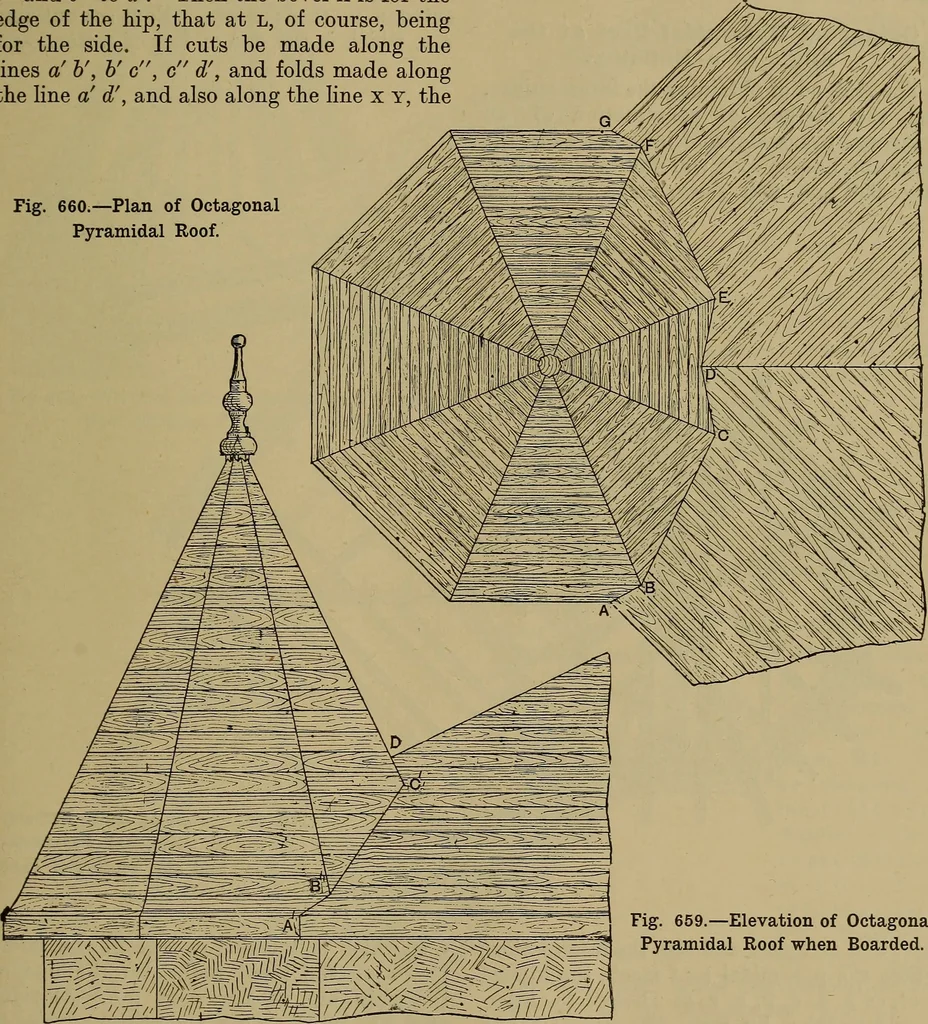

making a h equal to a b ; join V toc and c to d. Then the bevel k is for theedge of the hip, that at l, of course, beingfor the side. If cuts be made along thelines a V, V c, e d\ and folds made alongthe line a d\ and also along the line x y, the Fig. 660.—Plan of OctagonalPyramidal Roof. ing. Fig.… … m^rtm true shape of the edge can be made to standover its plan, as indicated by the conven-tional sketch (Fig. 653), which can be easilyfollowed, as the same lettering is adopted asin Fig. 652. A model made as suggestedin thick paper or card would prove the work- Fig. 659.—Elevation of…
