Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 225

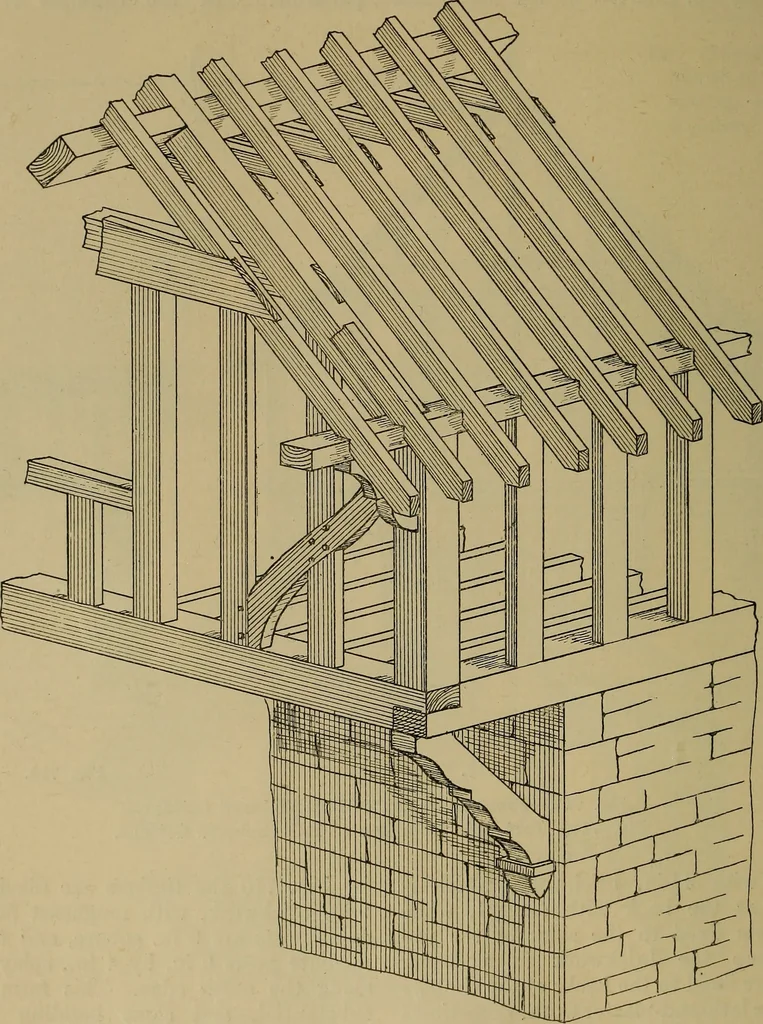

e rebated atthe back (see Fig. 711), or it must be formedof two pieces bolted together as shown in CARPENTRY AND JOINERY. section by Fig. 712, or mitred and boltedtogether as in Fig. 713 (p. 199). Fixing Door= and Window=frames. Figs. 714 and 715 (scale = 1 in. to 1 ft.)show common methods of… … Fig. 719.—Conventional View of naked Timber Work fitted together. and window-frames in half-timber work. Theposts are in each case rebated for the frame,and sometimes extend the full thickness ofthe wall. leading points in the specification :—Thetimber (oak, fir, or pitchpine) to be of…
Carpentry · Joinery
