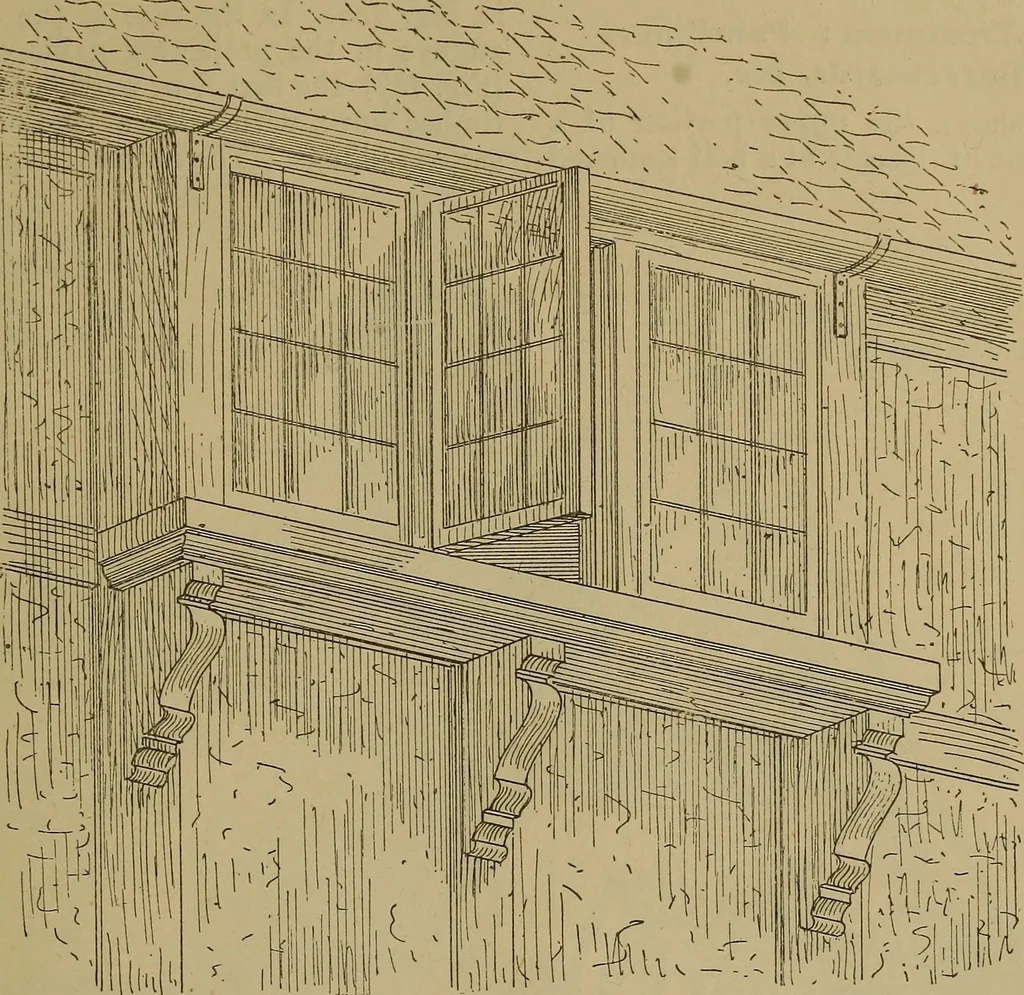

Fig. 731.—Conventional Viewshowing Brickwork with ShamHalf-timber Work fixed to it. to build the brickwork up, and then to fix is splayed on its upper edge for weathering,the wooden framing to wooden bricks or Fig. 732 illustrates a case where the side sillplugs. The edges are bevelled in to… … Fig. 733.—Conventional View of Projecting Window supported on Moulded Brackets. front sill c tenons into this.The joists are notched outto project under the sill, andhave their ends ornamentedas shown. The angle issupported by the mouldedwooden corbel a. Supporting UpperWindows. One of the general…
