Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 302

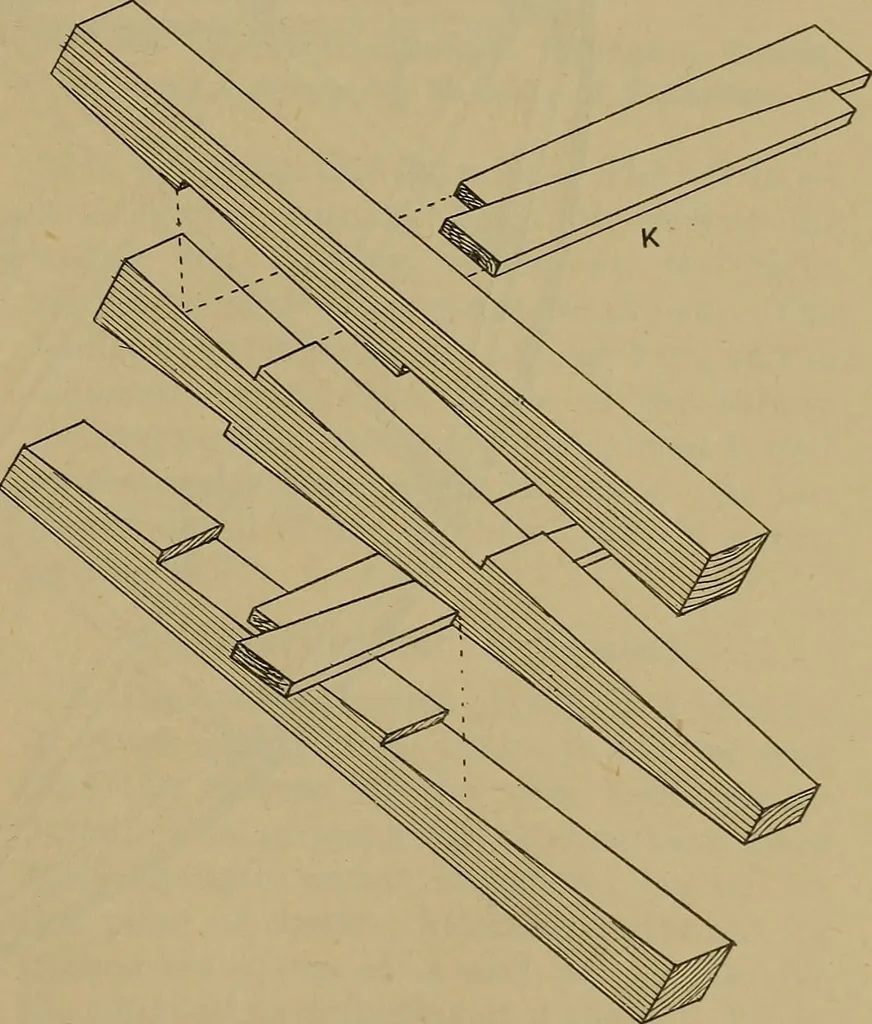

Fig. 903.—Enlarged Details of Joints at F and G(Fig. 900). … Fig. 904.—Enlarged Detail of the System of Wedging for Striking Centre at H (Fig. 900). 278 CARPENTRY AND JOINERY. is shown by Figs. 905 and 906. This formis applicable where intermediate supports The right-hand half shows an alternativemethod where the head beam a is supported
Carpentry · Joinery
