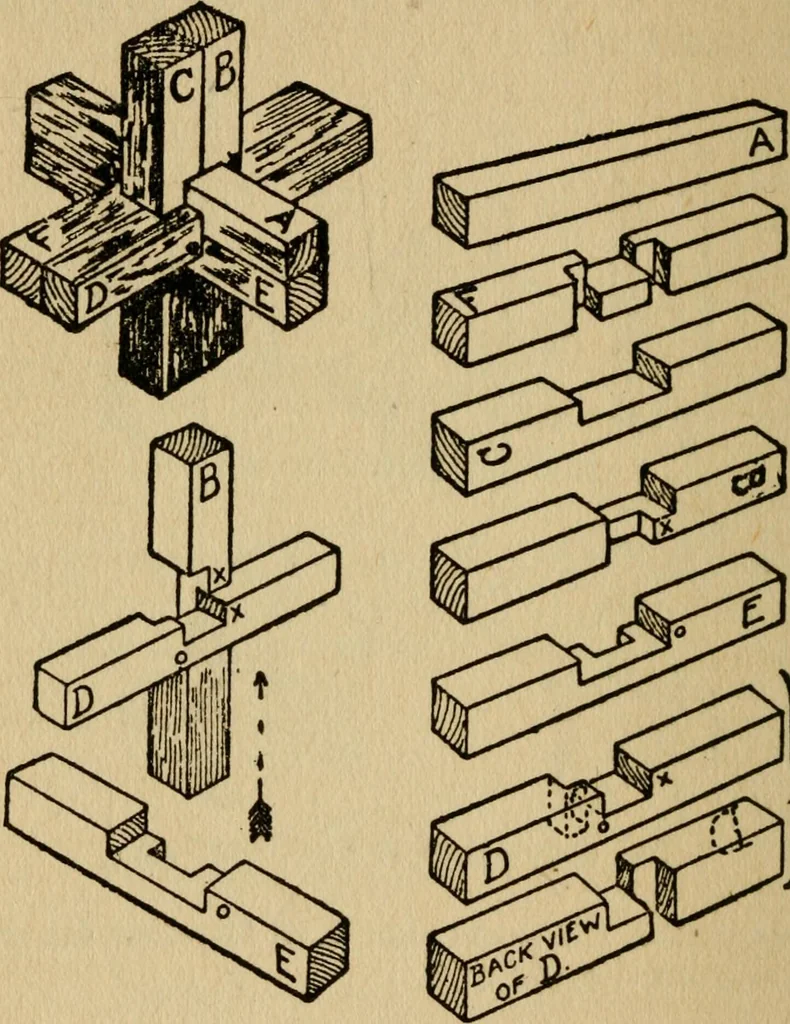

six-piece puzzle joint, similar insome respects to Fig. 421, but in this case the piecesB. C, D, E and F asre cut sHghtly different. Both a backand front view of the piece D is shown for clearness ofillustration. The method of assembling the pieces is asfollows:—Hold piece B upright, and fit piece… … Fig. 427.—Six-piece Joint Puzzle. the small 0 marks are opposite each other. Piece C isnow fitted behind D, and then piece F will slide in positionand push downwards. The key-piece A is now put inposition, and the puzzle is completed. 200 INDEX Air-tight joints, ii6 Alignment in hingeing, 94…
