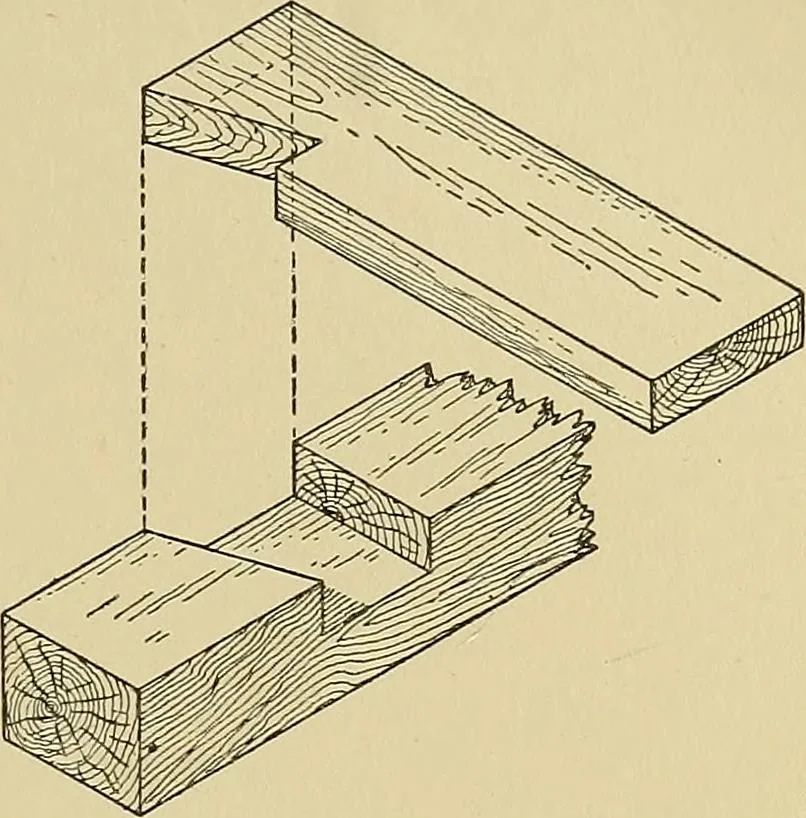

Fig. 51. Halved Joint Fig. 52. Dovetail Halved Joint will be in all respects equivalent to a single unbroken piece, and willsatisfy all of the requirements of the unbroken piece. This is reallythe only measure of the efiiciency of a splice. 64 CARPENTRY 55 … Dovetail Halved Joint with OneFlare There are three kinds of forces to which a piece may be sub-jected, namely: Compression, tension, and bending. A sphce whichwould be very effective in atimber acted upon by one of theseforces might be absolutely worth-less in a piece which must resistone of the…
