Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 320

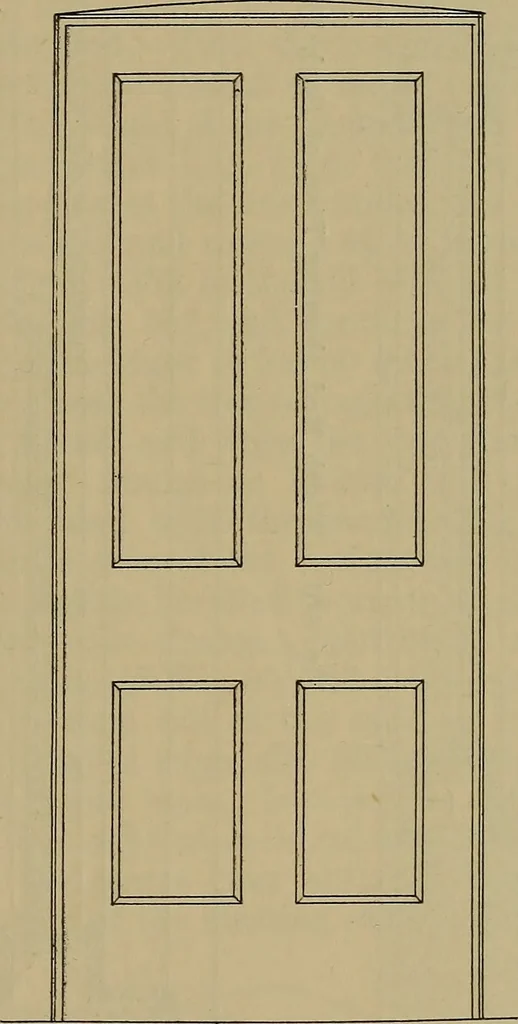

9 o .a wO W Rods for Boxed Sash Frame. It is desirable that not only the joinerswork shall be shown on the rod, but the nx 1 s_ Fig. 948.— Mould of Frame used in Fig. 946. Fig. 949.— Mould of Panel in Fig. 946. … Fig. 950.—Elevation of Four-panelled Door. brickwork in which it is placed, and themethod of obtaining the interior finishings.The setting out a rod for an ordinary boxedsash frame, of which Fig. 951 is a plan, atthe window-board level, and a horizontalsection through the frame and brickwork,will…
Carpentry · Joinery
