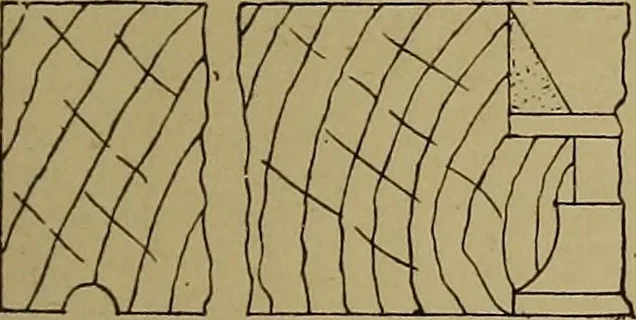

Fig. 985.—Detail showing Method of Fixing Bar to Bottom Rail. should carry about the same line of sight asthe moulding vertically ; it will thereforeproject 2 in. on the horizontal line. Indicateroughly the depth of the joist, and showboarding and lead to flat. Divide the spaceat the spandril end,… … QP_J -*H Fig. 986.—Detail Section through Stile and Sideof Skylight. boarding f. Turn the rod over, and set outFig. 982 ; draw a line 1 in. from the edge asbefore, and set up two perperdiculars 6 ft.apart. These lines must be the same lengthas from c to g (Fig. 981), being the heightto the under…
