Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 378

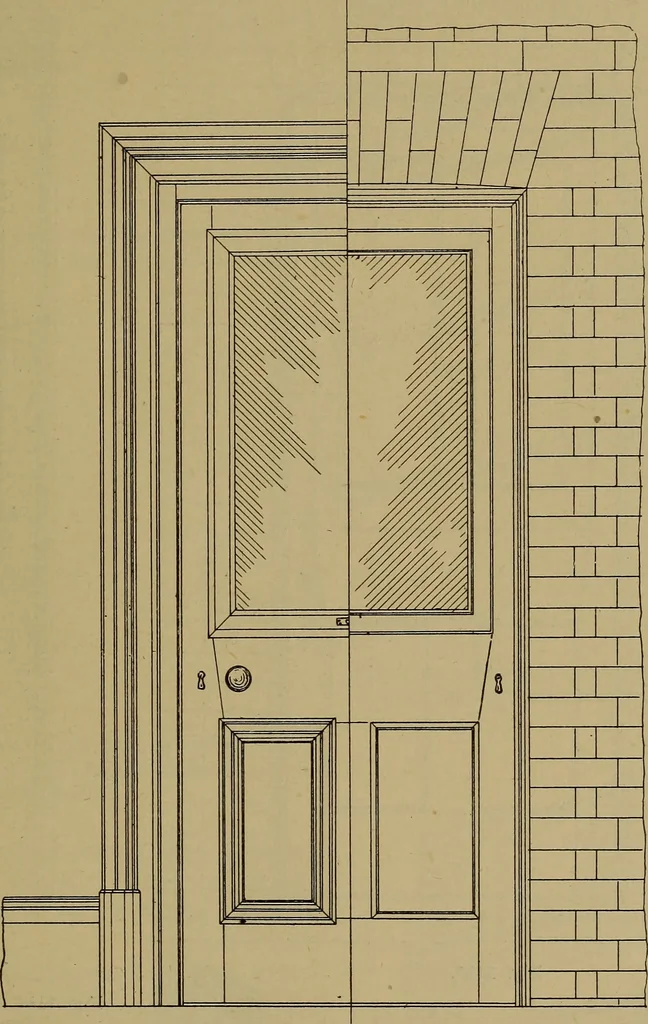

—Conventional View showing Portion Fig. 1153.—Enlarged Detail through Head andof Head and Butt Panels and Framing. Transom of Frame. DOORS AND DOOR FRAMES. 349 The Door.—In making this, the points toj notice beyond those already treated on are: that the face of the panels on the outside| usually… … Fig. 1158.—Half Inside Elevation and Half Outside Elevation with Shutter Removed. panels are rebated on the outside to fit intothe ploughed groove of the framing. A j-in.,f-in., or f-in. bead is worked on the verticaledges of the panels, but the ends of thepanels fit square to the edges of the…
Carpentry · Joinery
